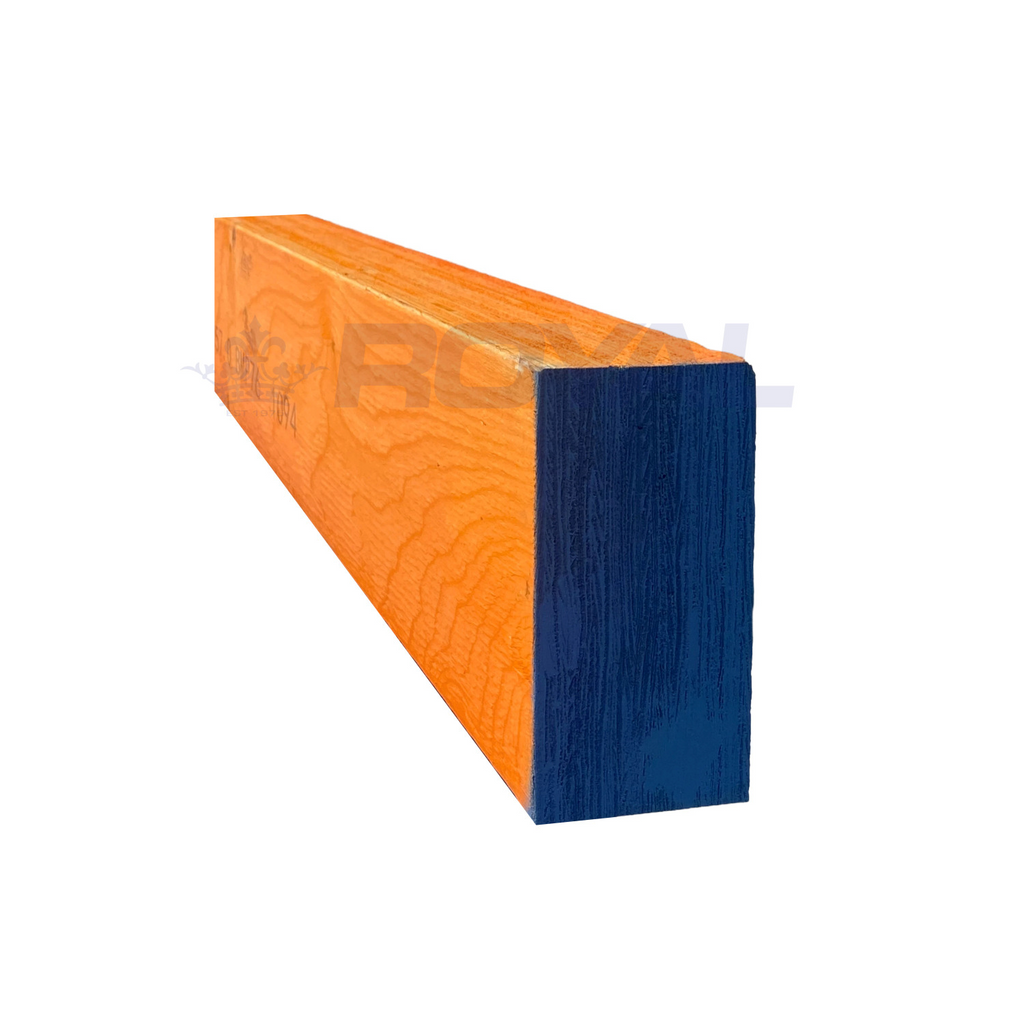

4M Beam LVL is a structural formwork Laminated Veneer Lumber (LVL) Engineered Wood Product. Manufactured using an ‘A’ Bond with E0 emissions from the final product, these beams meet the requirements of AS/NZS 4357. They are light, strong, and straight, painted orange for moisture protection, increasing durability and easy identification. 4M Beam LVL is used in concrete formwork to support structures such as joists, bearers, walers, and soldiers for horizontal and vertical formwork.
Features + Benefits:
Structural Support: Ideal for use in supporting concrete formwork structures.
Durable and Long-Lasting: Painted with moisture protection for increased durability.
Easy Identification: Orange color for easy identification on site.
Certified Quality: Meets AS/NZS 4357 standards with ‘A’ Bond and E0 emissions.
Product Uses: Ideal for use in supporting joists, bearers, walers, and soldiers in both horizontal and vertical concrete formwork applications.
Pack Size:
| Description |
Size (mm) |
Length (mm) |
Weight (kg/length) |
Pack Qty |
Code Number |
| 4M Beam LVL |
95x47 |
2400 |
7.29 |
77 |
4M954724 |
| 4M Beam LVL |
95x47 |
3000 |
9.11 |
77 |
4M954730 |
| 4M Beam LVL |
95x47 |
3600 |
10.93 |
77 |
4M954736 |
| 4M Beam LVL |
95x47 |
4200 |
12.75 |
77 |
4M954742 |
| 4M Beam LVL |
95x47 |
4800 |
14.57 |
77 |
4M954748 |
| 4M Beam LVL |
95x47 |
5400 |
16.40 |
77 |
4M954754 |
| 4M Beam LVL |
95x47 |
6000 |
18.22 |
77 |
4M954760 |

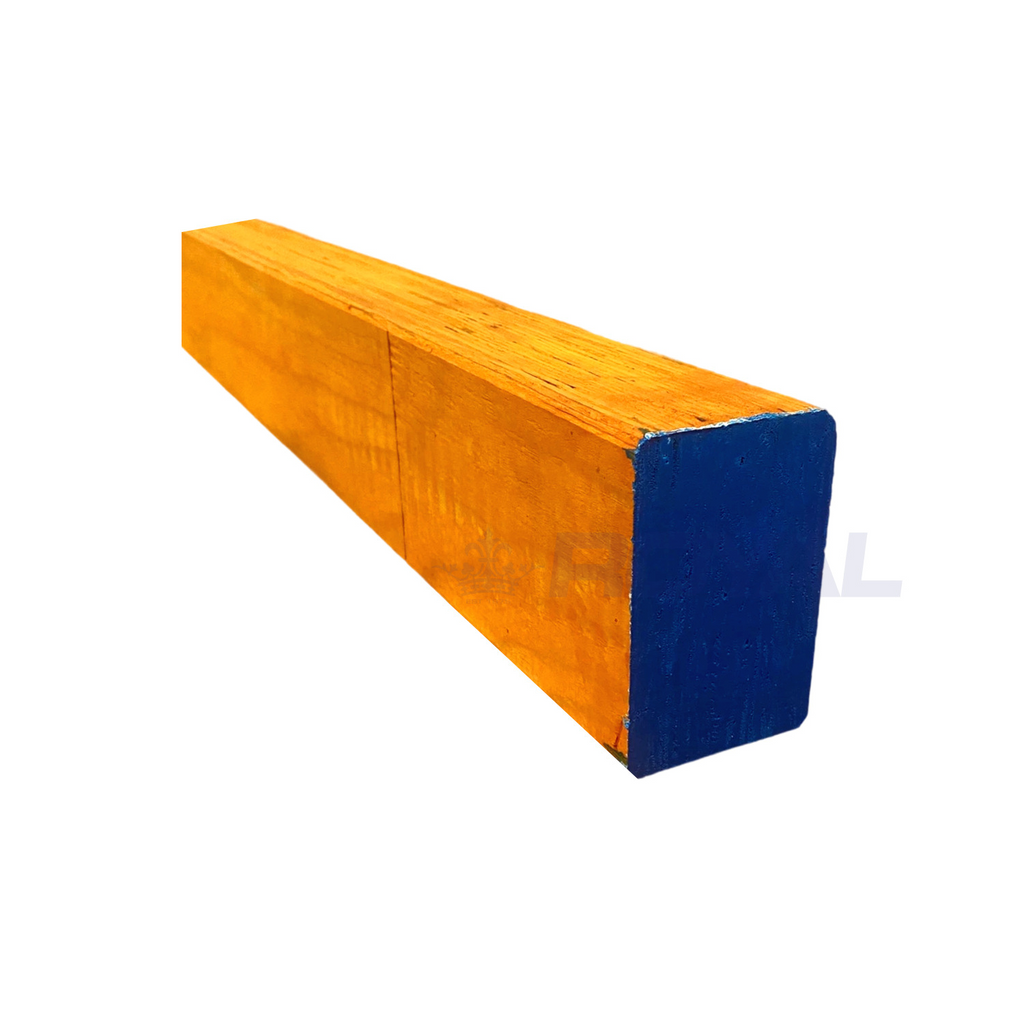

| 4M Beam LVL |
95x65 |
2400 |
10.08 |
55 |
4M956524 |
| 4M Beam LVL |
95x65 |
3000 |
12.60 |
55 |
4M956530 |
| 4M Beam LVL |
95x65 |
3600 |
15.12 |
55 |
4M956536 |
| 4M Beam LVL |
95x65 |
4200 |
17.64 |
55 |
4M956542 |
| 4M Beam LVL |
95x65 |
4800 |
20.16 |
55 |
4M956548 |
| 4M Beam LVL |
95x65 |
5400 |
22.67 |
55 |
4M956554 |
| 4M Beam LVL |
95x65 |
6000 |
25.19 |
55 |
4M956560 |
| 4M Beam LVL |
150x77 |
2400 |
18.85 |
28 |
4M1507724 |
| 4M Beam LVL |
150x77 |
3000 |
23.56 |
28 |
4M1507730 |
| 4M Beam LVL |
150x77 |
3600 |
28.27 |
28 |
4M1507736 |
| 4M Beam LVL |
150x77 |
4200 |
32.99 |
28 |
4M1507742 |
| 4M Beam LVL |
150x77 |
4800 |
37.70 |
28 |
4M1507748 |
| 4M Beam LVL |
150x77 |
5400 |
42.41 |
28 |
4M1507754 |
| 4M Beam LVL |
150x77 |
6000 |
47.12 |
28 |
4M1507760 |
* Pack Qty may change from time to time.
