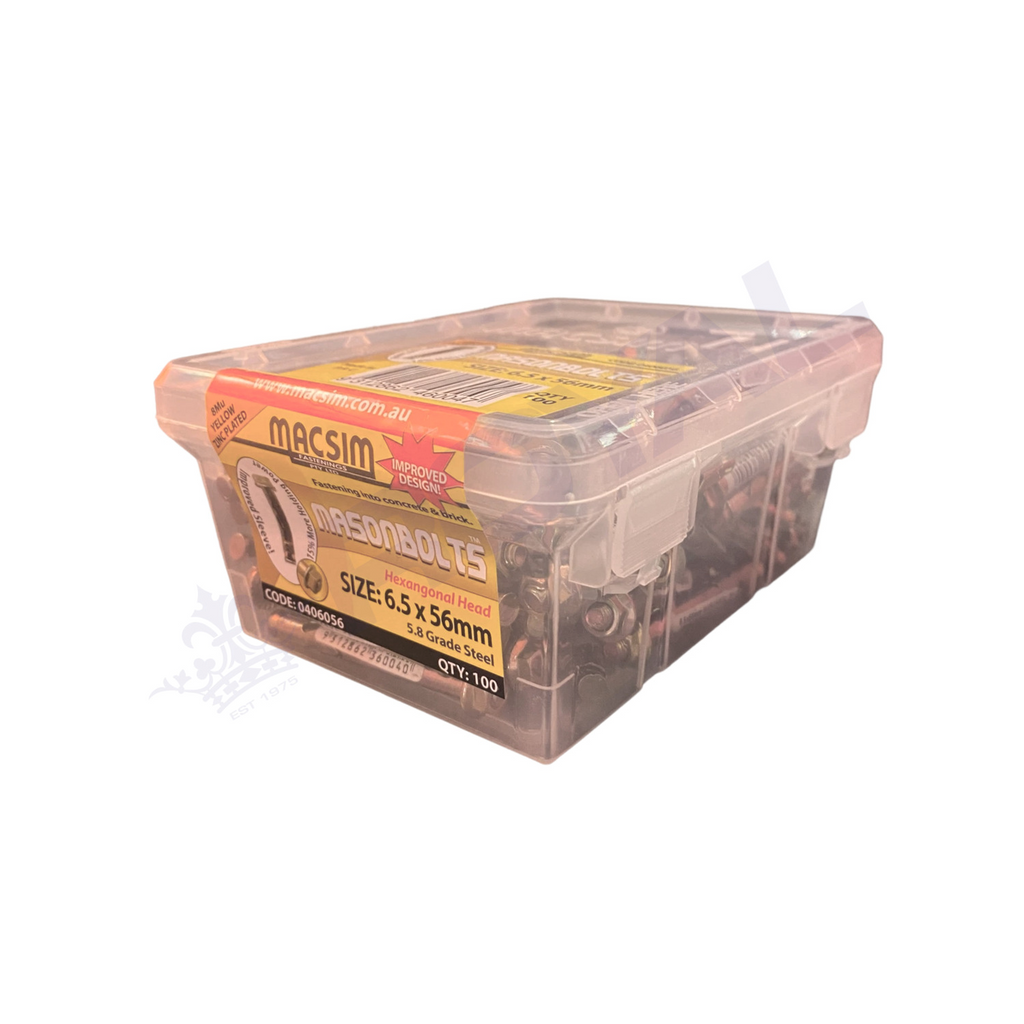

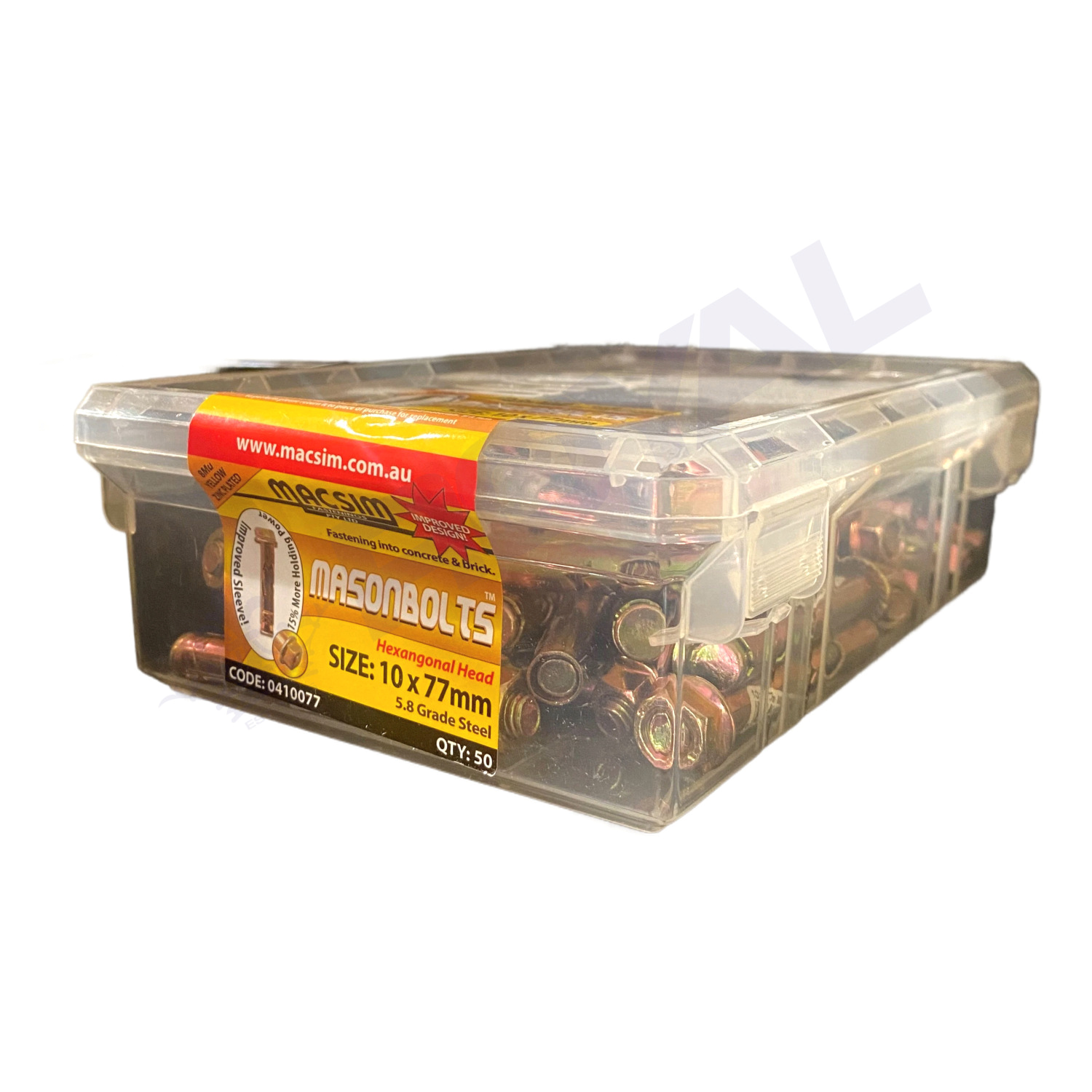

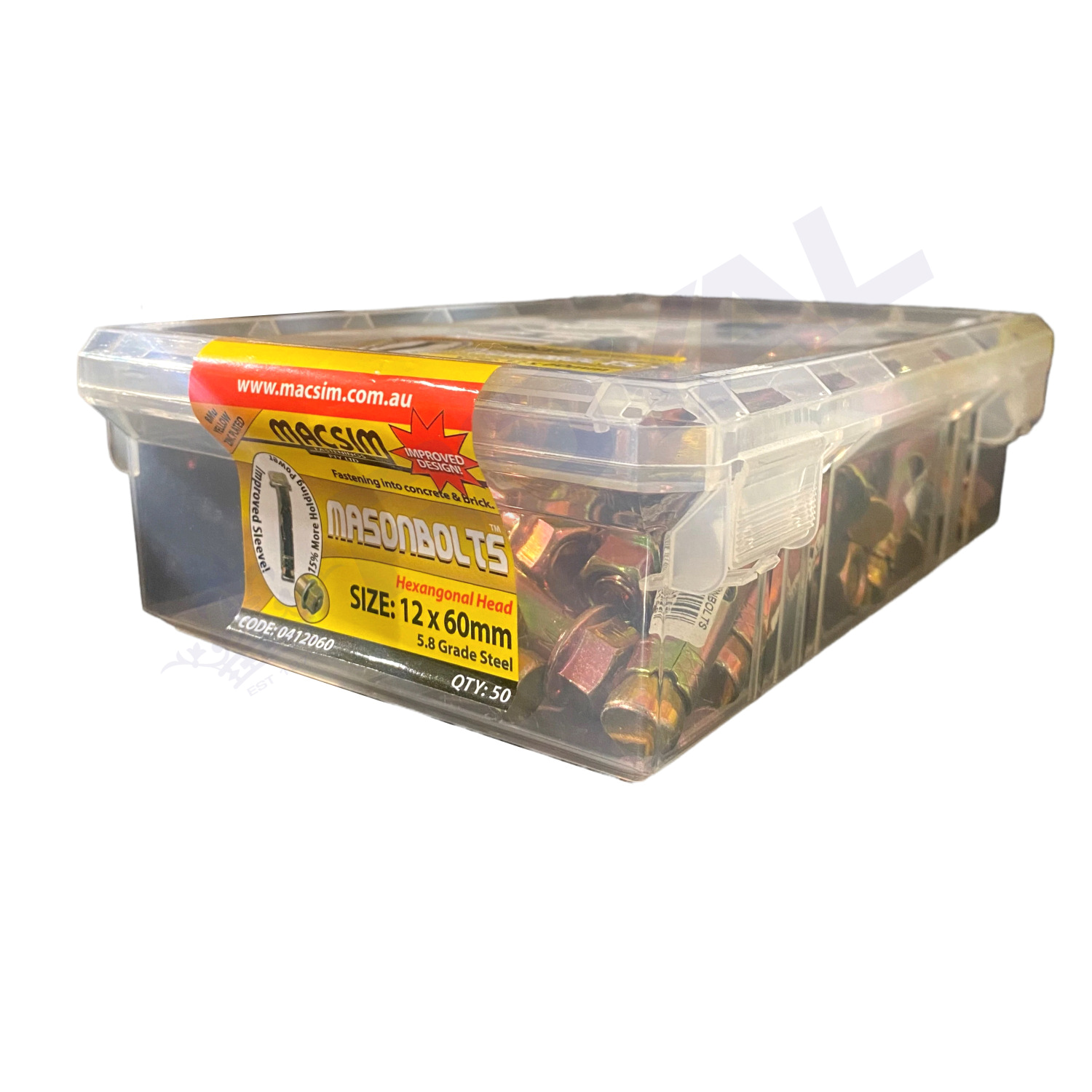

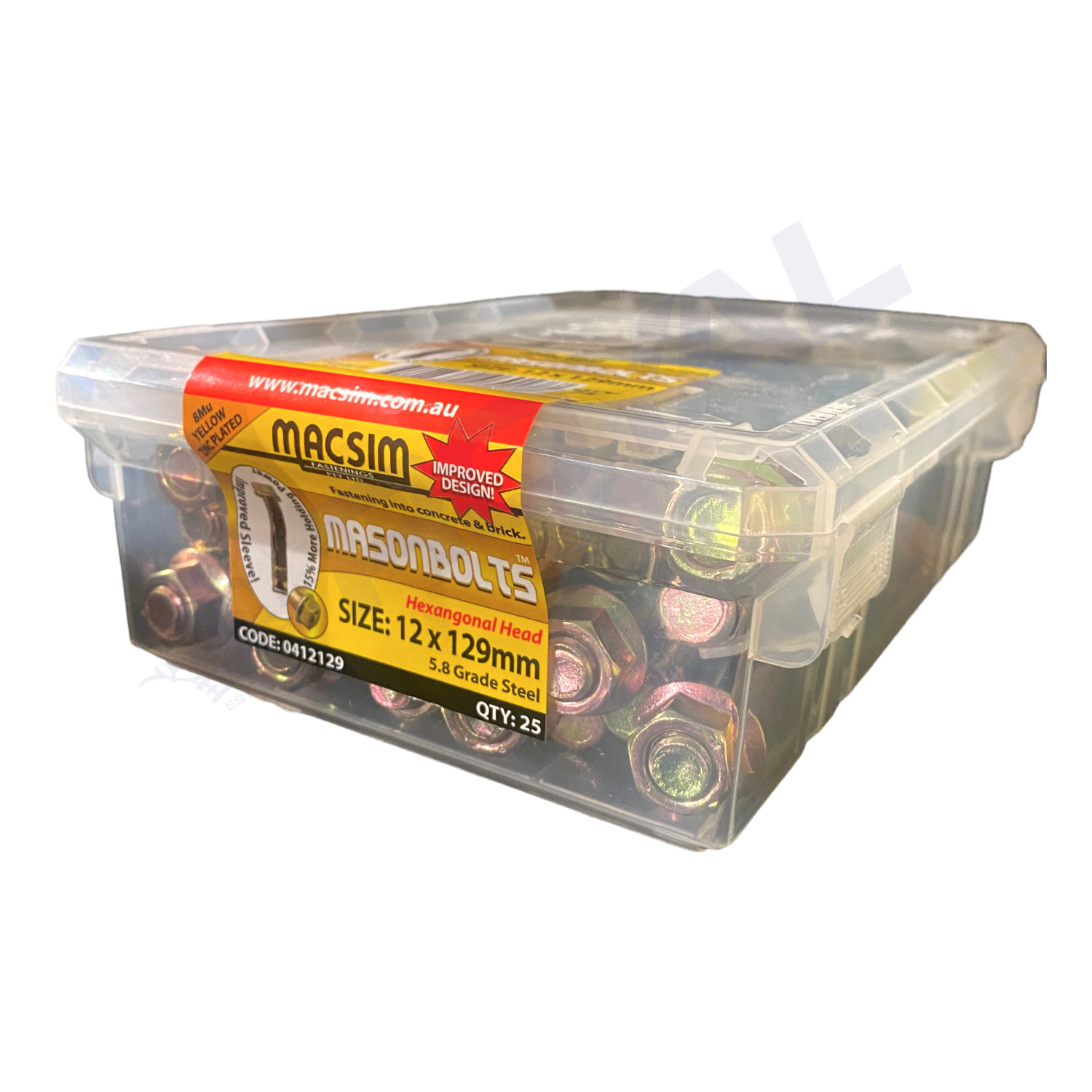

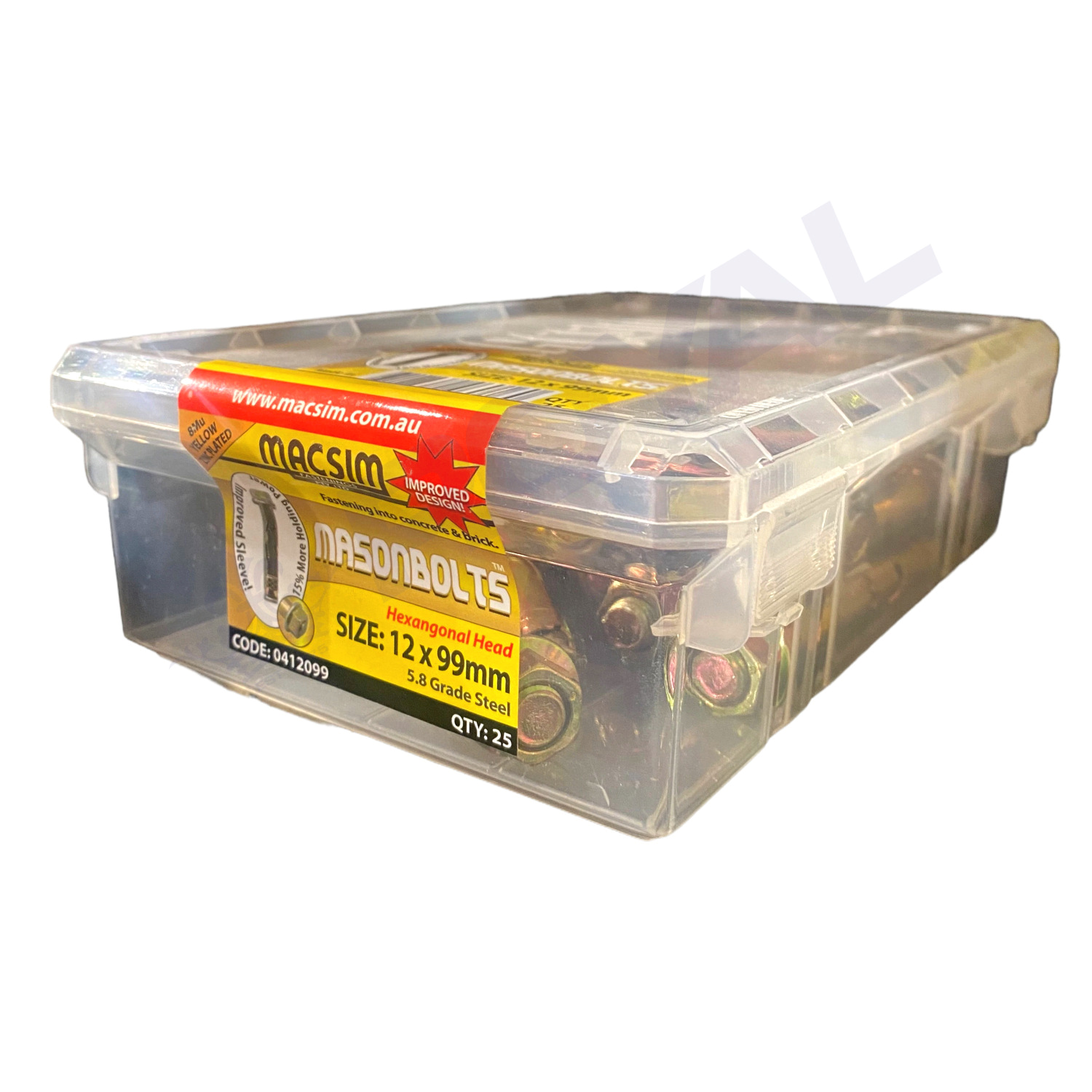

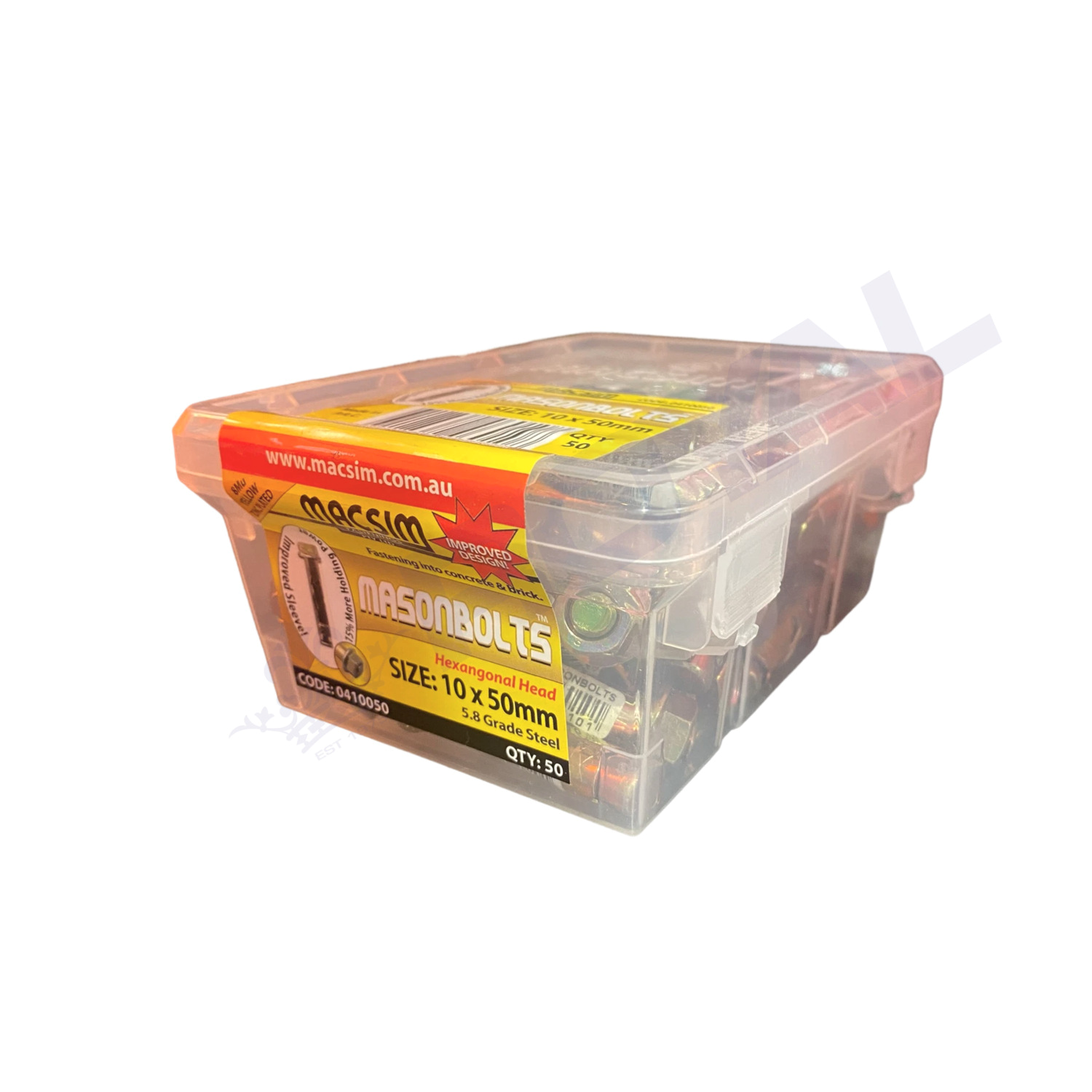

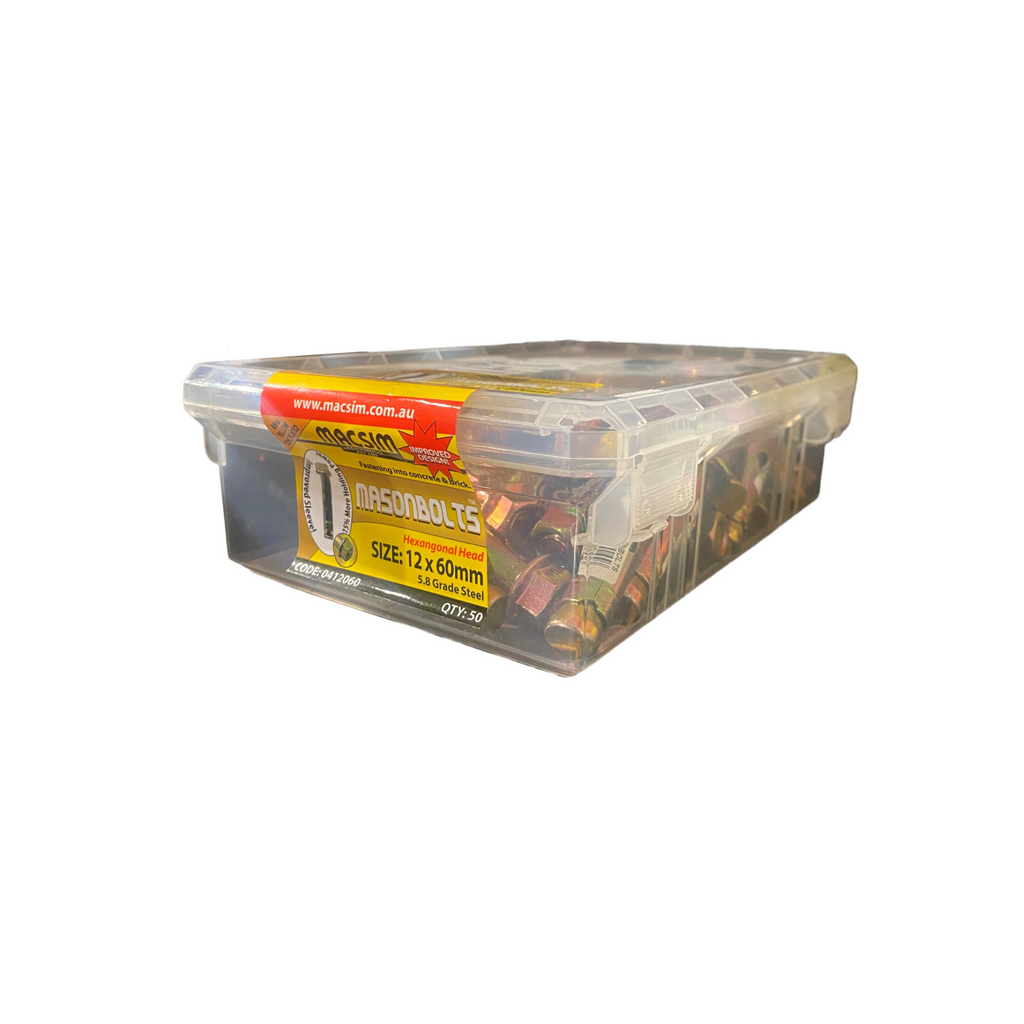

Macsim Hexnut Masonbolts

Macsim Hexnut Masonbolts are high-performance masonry anchors designed for medium load applications, offering instant load capacity and a reliable hold in concrete and solid masonry. Featuring a registered sleeve design for enhanced pullout strength, these anchors eliminate the need for separate clearance holes—using the same size for both the anchor and the drill hole. Ideal for quick, secure fastening, they are finished with 8μm yellow zinc plating for corrosion resistance and durability.

Features + Benefits:

Instant Load Capacity: Delivers secure fastening as soon as installed—no waiting for curing or setting.
Registered Sleeve Design: Provides high pullout resistance, improving overall anchor strength.
Same Size Drill & Clearance Hole: Simplifies installation and speeds up the fixing process.
Hex Head Design: Ensures strong grip and easy installation with standard tools.
Yellow Zinc Plated: 8μm finish offers added corrosion resistance for long-lasting performance.

Product Uses:

Ideal for fixing into concrete or solid masonry in medium-load applications such as racking, fixtures, brackets, electrical boxes, and light structural fittings.

Specifications:

Drill Size: 6.5mm
Anchor Length: 18mm
Depth: 15mm
Fasten Range: 3mm
Head Type: Hex Head
Finish: 8μm Yellow Zinc Plated
Quantity per Pack: 100
Carton Qty: 12 Packs
Packaging Type: Q Plastic Pack
