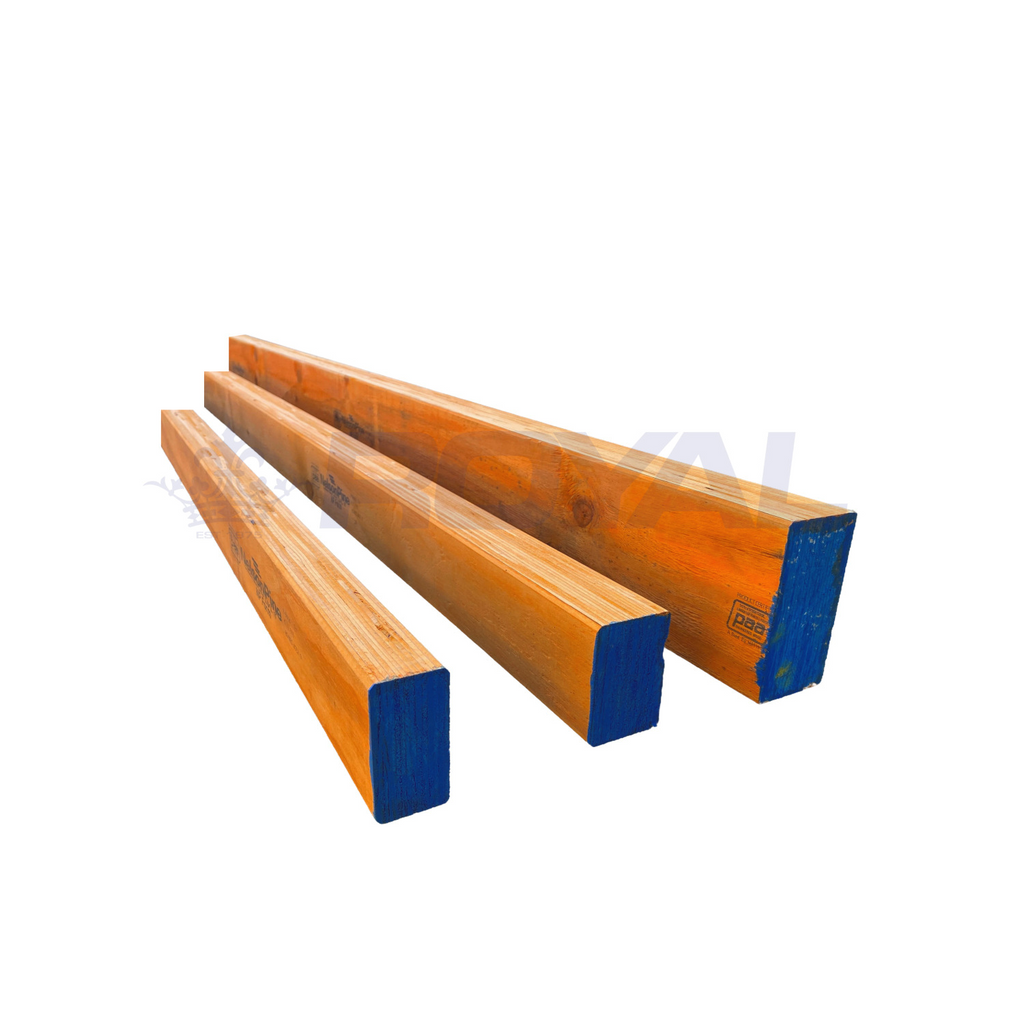

NP FORM LVL (New Zealand Made)

NP Form LVL is a premium, E11 stress-graded Laminated Veneer Lumber (LVL) manufactured in New Zealand by NelsonPine LVL. This structural formwork LVL meets AS/NZS 4357 standards and is ideal for use as concrete formwork, joists, bearers, walers, soldiers, and supports. NP Form LVL is known for its strength, lightness, straightness, and uniformity, which help reduce forming costs and improve the quality of concrete finishes.

NP Form LVL features chamfered edges for ease of handling and a water-repellent orange paint finish. It is EWPAA product certified and sourced from managed New Zealand pine plantation forests with FSC Chain of Custody.

Features + Benefits:

High-Quality Structural Support: Ideal for concrete formwork, joists, bearers, walers, soldiers, and supports.
Durable and Lightweight: Strong, light, and straight, with uniformity that improves concrete finishes.
Water-Repellent Finish: Chamfered edges and orange paint finish for ease of handling and water resistance.
Certified and Sustainable: EWPAA product certification, sourced from FSC-certified New Zealand pine plantation forests.
Product Uses: Perfect for use in concrete formwork and structural applications, offering reliability and efficiency in construction projects.
Pack Size:

Description	Size (mm)	Length (mm)	Weight (kg/length)	Pack Qty	Code Number

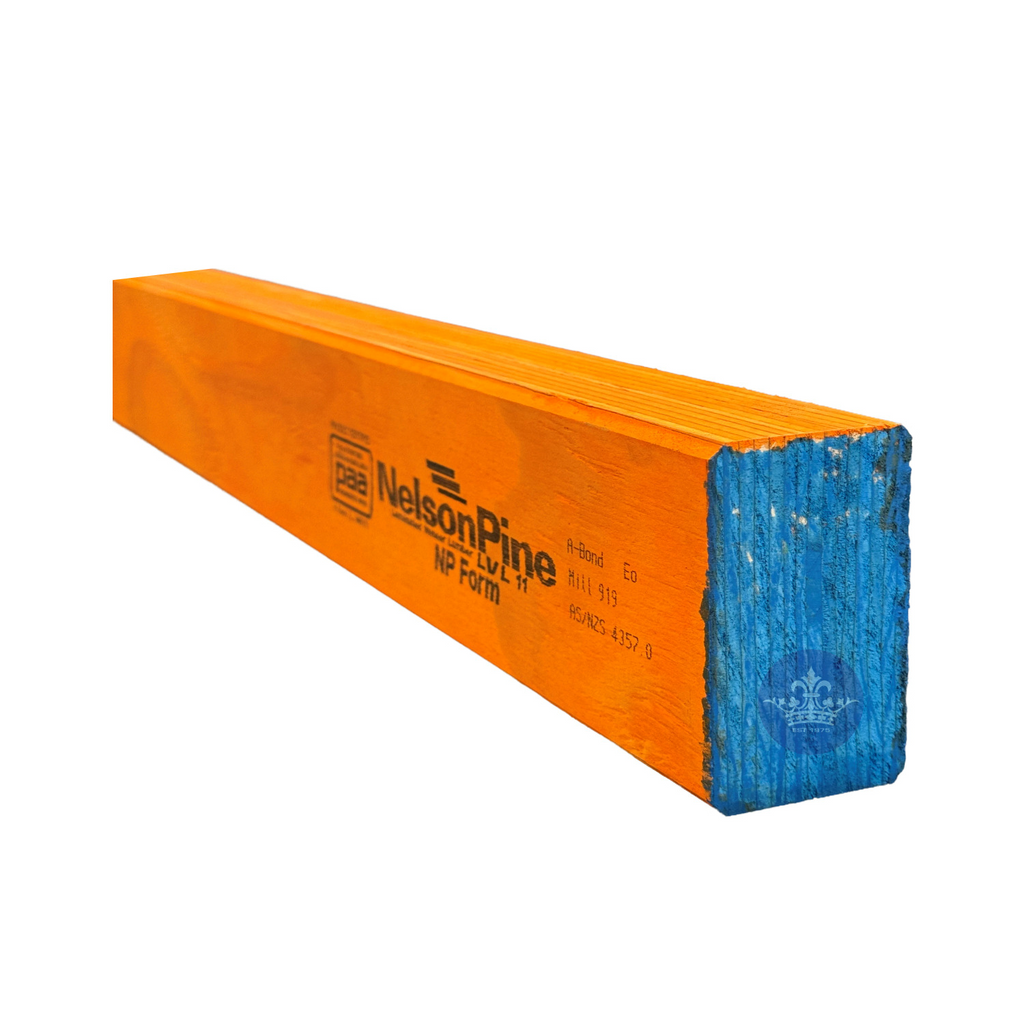

NP Form LVL	95x47	2400	6.00	77	NP954724
NP Form LVL	95x47	3000	7.50	77	NP954730
NP Form LVL	95x47	3600	9.00	77	NP954736
NP Form LVL	95x47	4200	10.50	77	NP954742
NP Form LVL	95x47	4800	12.00	77	NP954748
NP Form LVL	95x47	5400	13.50	77	NP954754
NP Form LVL	95x47	6000	15.00	77	NP954760
NP Form LVL	95x65	2400	8.40	55	NP956524
NP Form LVL	95x65	3000	10.50	55	NP956530
NP Form LVL	95x65	3600	12.60	55	NP956536
NP Form LVL	95x65	4200	14.70	55	NP956542
NP Form LVL	95x65	4800	16.80	55	NP956548
NP Form LVL	95x65	5400	18.90	55	NP956554
NP Form LVL	95x65	6000	21.00	55	NP956560

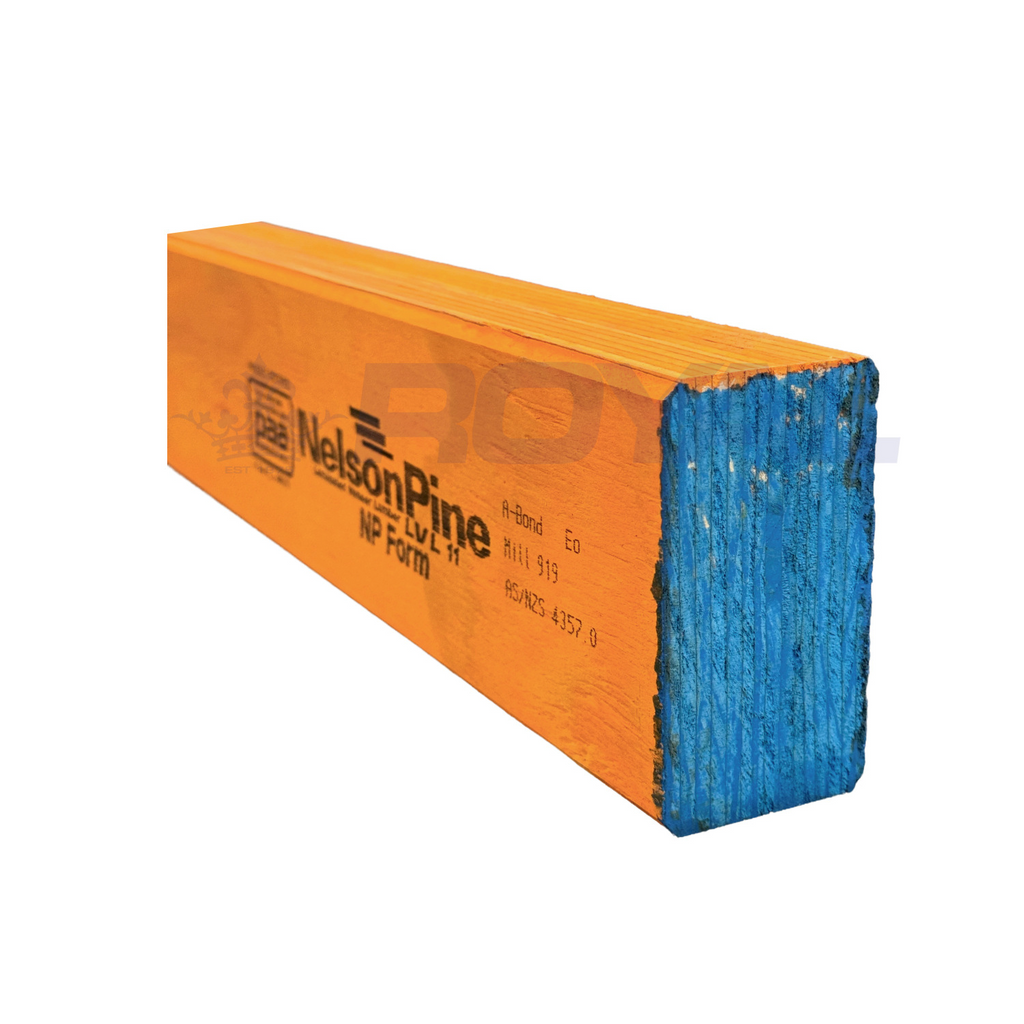

NP Form LVL	150x77	2400	15.84	35	NP1507724
NP Form LVL	150x77	3000	19.80	35	NP1507730
NP Form LVL	150x77	3600	23.76	35	NP1507736
NP Form LVL	150x77	4200	27.72	35	NP1507742
NP Form LVL	150x77	4800	31.68	35	NP1507748
NP Form LVL	150x77	5400	35.64	35	NP1507754
NP Form LVL	150x77	6000	39.60	35	NP1507760

NP Form LVL Section Properties

D x W (mm)	MASS (kg/m)	RIGIDITY EI (x10^9 Nmm²)	Design Capacity Øm (KMn)	Design Capacity Øv (kN)
95 x 47	2.5	36.9	2.8	17.4
95 x 65	3.5	51.1	3.2	18.0
150 x 77	6.6	238.2	9.6	33.6
