Royal Brace SF - Cross Bracing

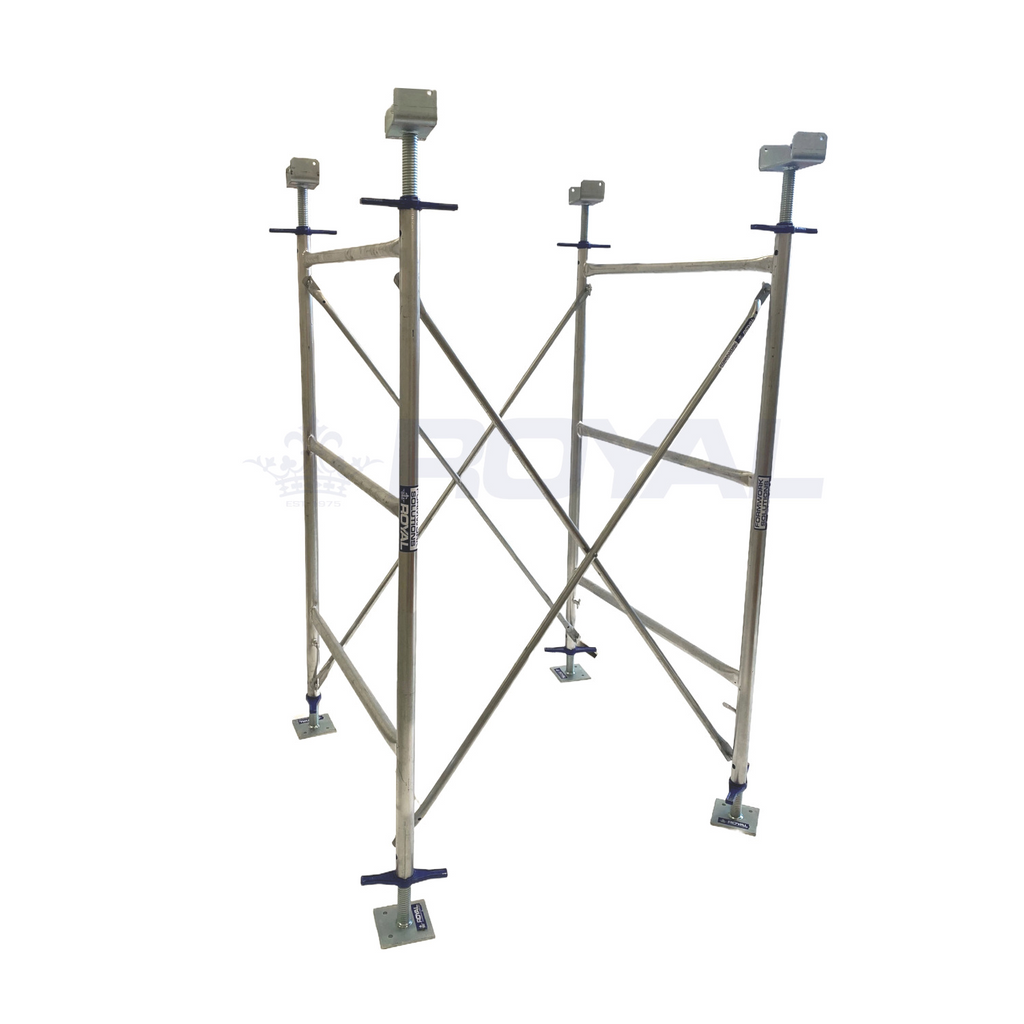

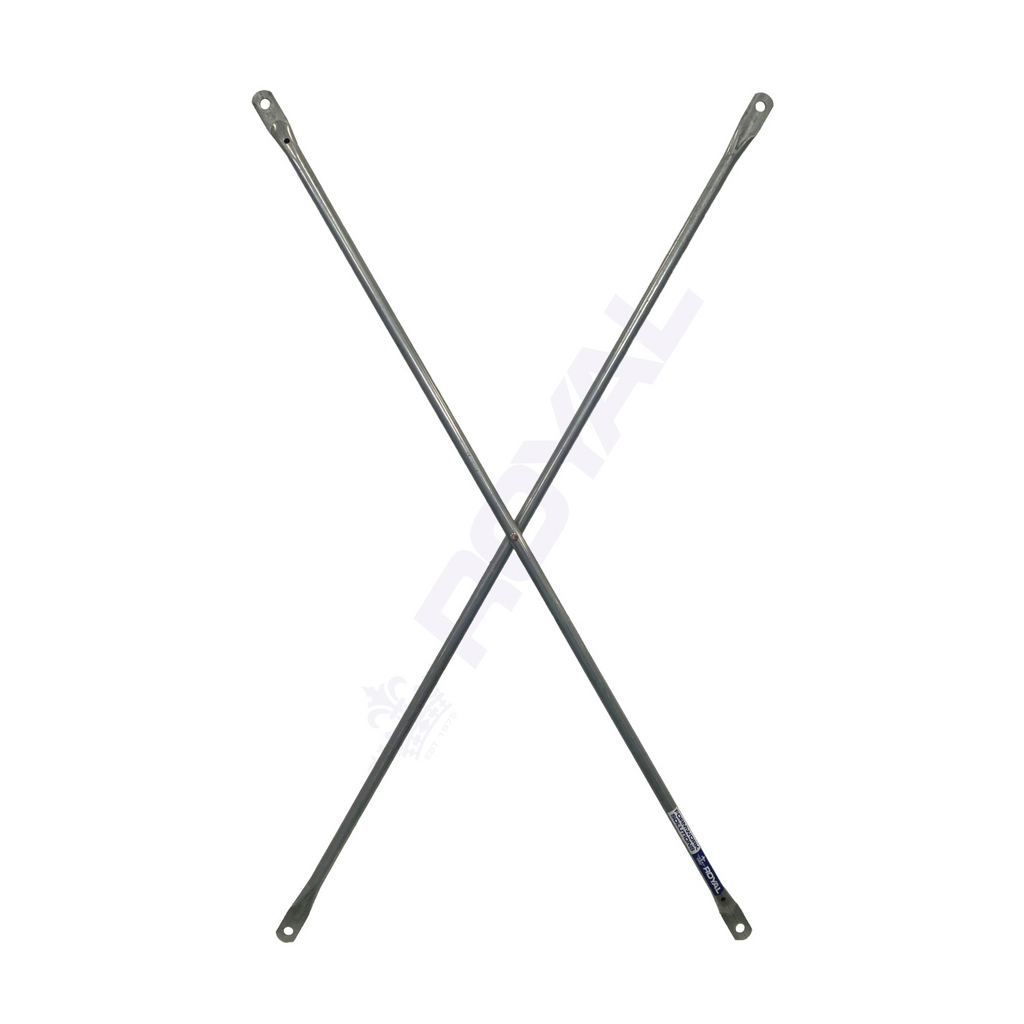

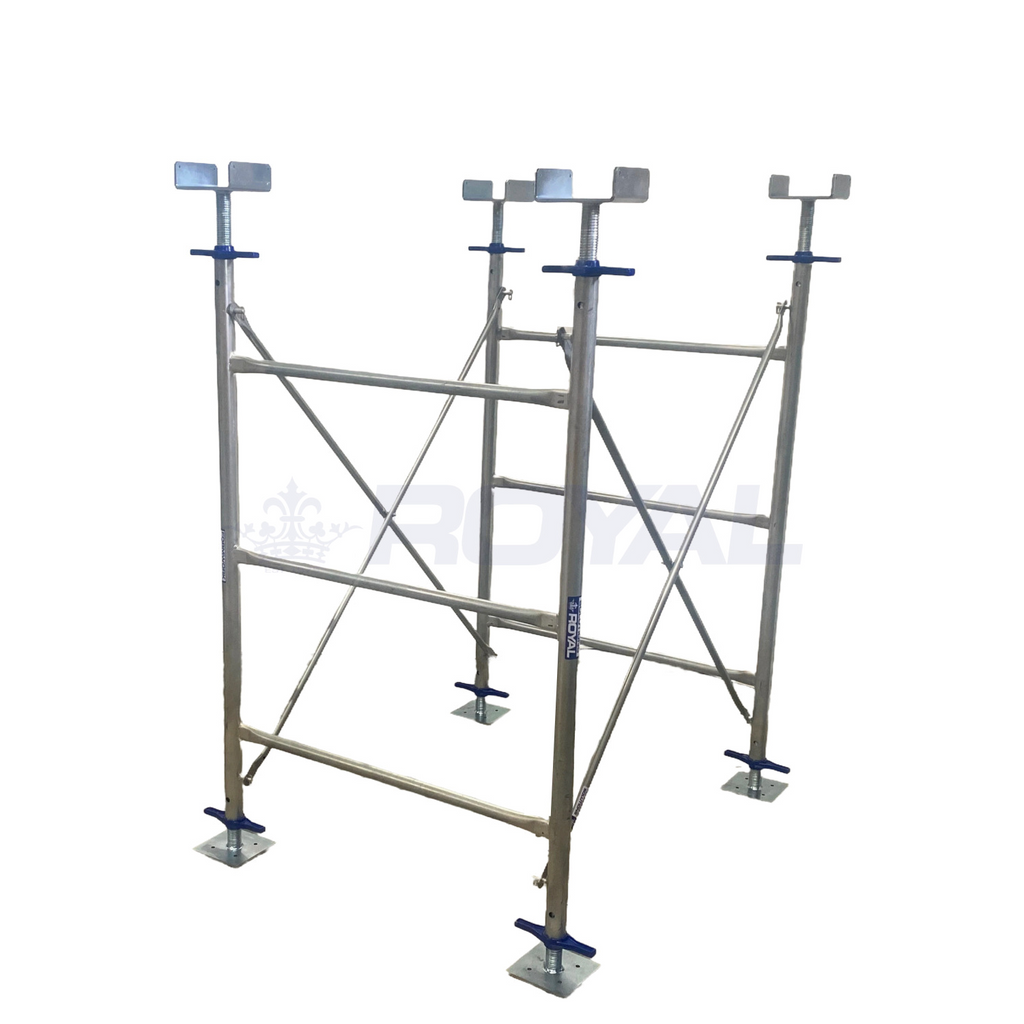

ROYALbrace SF – Imperial Brace System is a lightweight, high-strength cross bracing solution designed to connect and stabilise formwork shoring frames. Constructed from hinged 27mm diameter galvanised steel, these braces are used to create falsework towers by securely linking two ROYALframes together. Each brace features drop latch pins at both ends for fast, reliable locking into place during assembly.

The ROYALbrace SF range uses the imperial system (feet and inches) for frame sizing and spacing, with brace lengths measured from centre hole to centre hole. Available in multiple frame heights and span widths, these braces are ideal for customising tower configurations across various shoring applications.

Features + Benefits:

Lightweight & Strong: Made from 27mm galvanised steel for ease of handling and long-term durability.

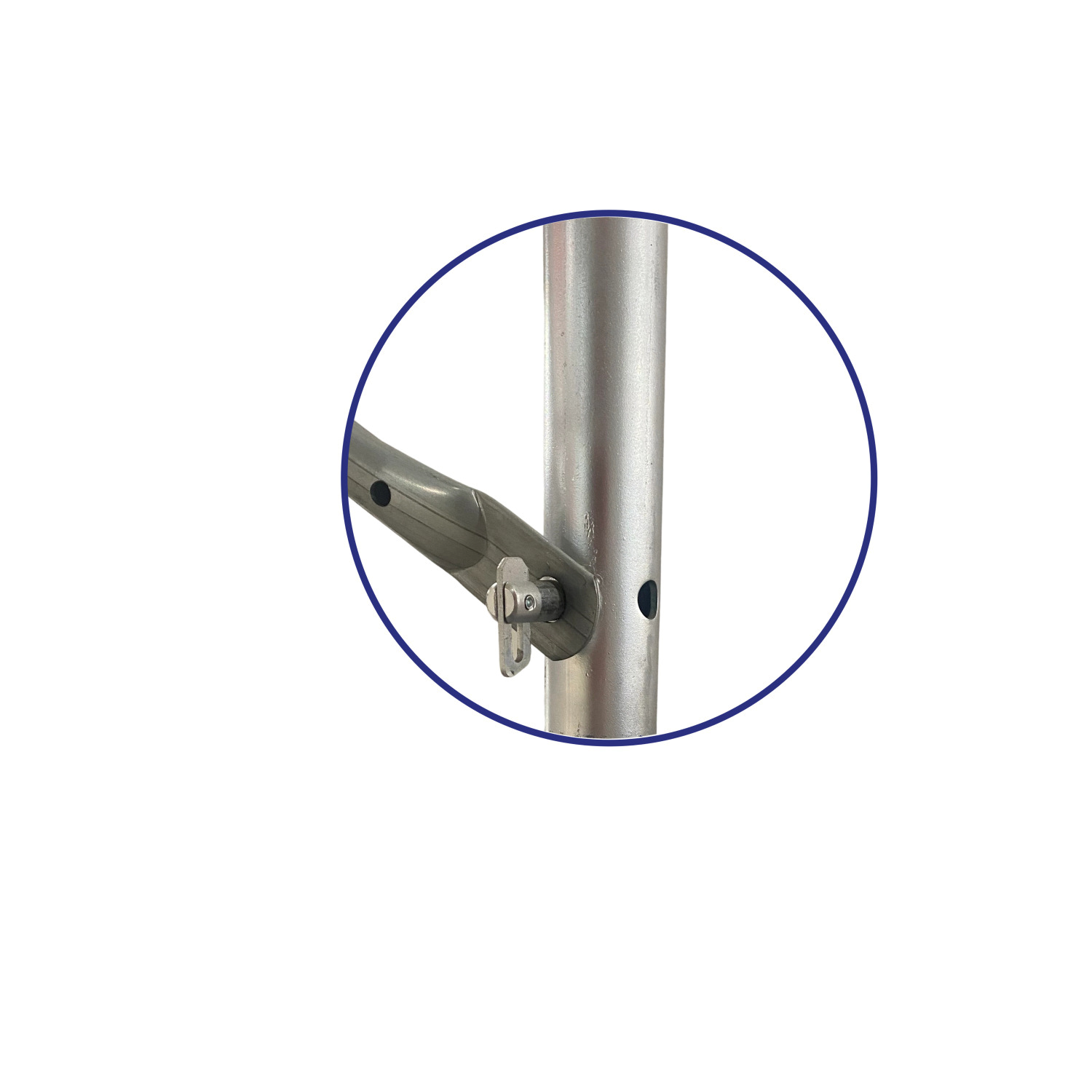

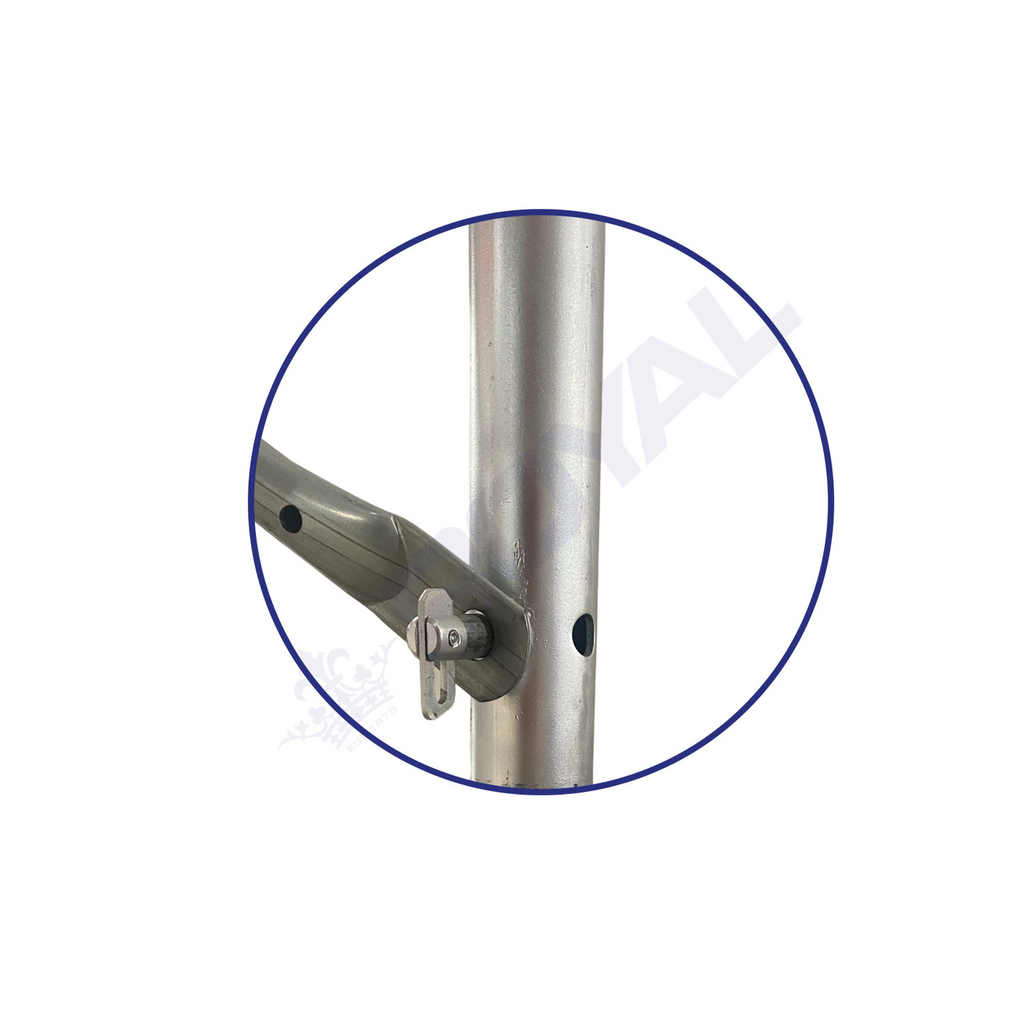

Quick Locking: Drop latch pins allow for fast and secure frame-to-frame connection.
Multiple Size Options: Accommodates 3ft, 4ft, 5ft, and 6ft frames with varying spans.
Optimised for ROYALframe Systems: Compatible with imperial measurement-based falsework setups.
Efficient Tower Setup: Simplifies assembly of braced frame towers for slab and deck support.

Product Uses:

Used to stabilise and space ROYALframe falsework towers in slab, beam, or modular formwork applications.

Specifications:

Description	Frame Height / Span	Length (mm)	Weight (kg)	Code Number
ROYALbrace 34	3ft frame / 4ft span	1364	2.60	RB34
ROYALbrace 35	3ft frame / 5ft span	1642	3.20	RB35
ROYALbrace 36	3ft frame / 6ft span	1929	3.70	RB36
ROYALbrace 44	4ft frame / 4ft span	1525	2.90	RB44
ROYALbrace 45	4ft frame / 5ft span	2046	3.40	RB45
ROYALbrace 46	4ft frame / 6ft span	2046	3.90	RB46
ROYALbrace 54	5ft frame / 4ft span	1725	3.30	RB54
ROYALbrace 55	5ft frame / 5ft span	1953	3.80	RB55
ROYALbrace 56	5ft frame / 6ft span	2199	4.20	RB56
ROYALbrace 64	6ft frame / 4ft span	1953	3.80	RB64
ROYALbrace 65	6ft frame / 5ft span	2157	4.10	RB65
ROYALbrace 66	6ft frame / 6ft span	2382	4.60	RB66
