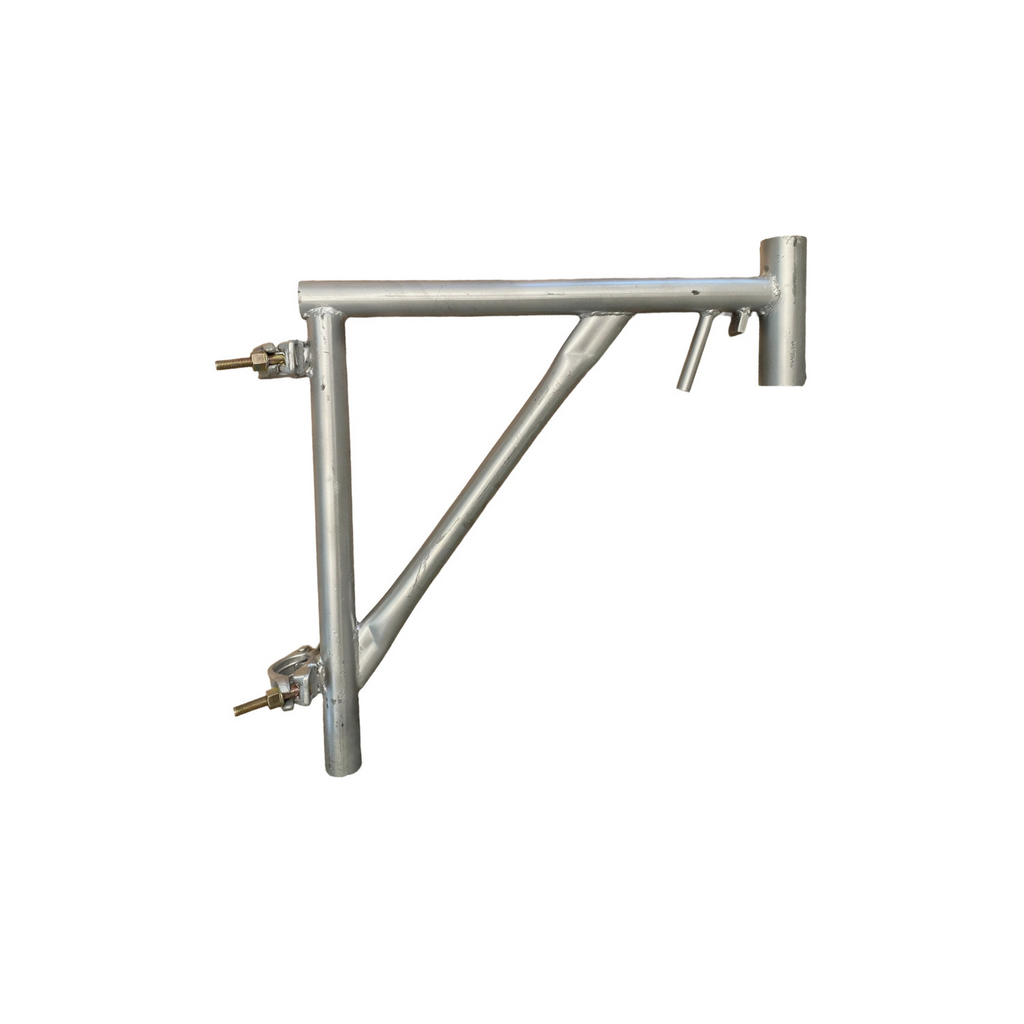

ROYAL Cantilever Bracket is a robust, fixed triangular support designed for small slab overhangs in formwork applications. This bracket securely hooks onto the horizontal ledger bar and rests on the leg of either the ROYALframe50 or ROYALframe60, providing dependable cantilever support. Each bracket includes a tubular jack receiver and an angled spigot for an additional prop, enhancing stability where extended support is required.
Features + Benefits:
Fixed Cantilever Support: Ideal for forming slab overhangs or edges.
Frame Compatibility: Designed to suit both ROYALframe50 and ROYALframe60 systems.
Additional Support Option: Tubular jack and angled spigot allow for extra bracing when needed.
Heavy-Duty Construction: Built from steel for long-lasting strength and reliability.
Product Uses:
Used to support cantilevered slabs or deck overhangs in conjunction with formwork frame systems, offering stability at slab edges or transitional zones.
Specifications:
| Description |
Cantilevering (mm) |
Weight (kg) |
Code Number |

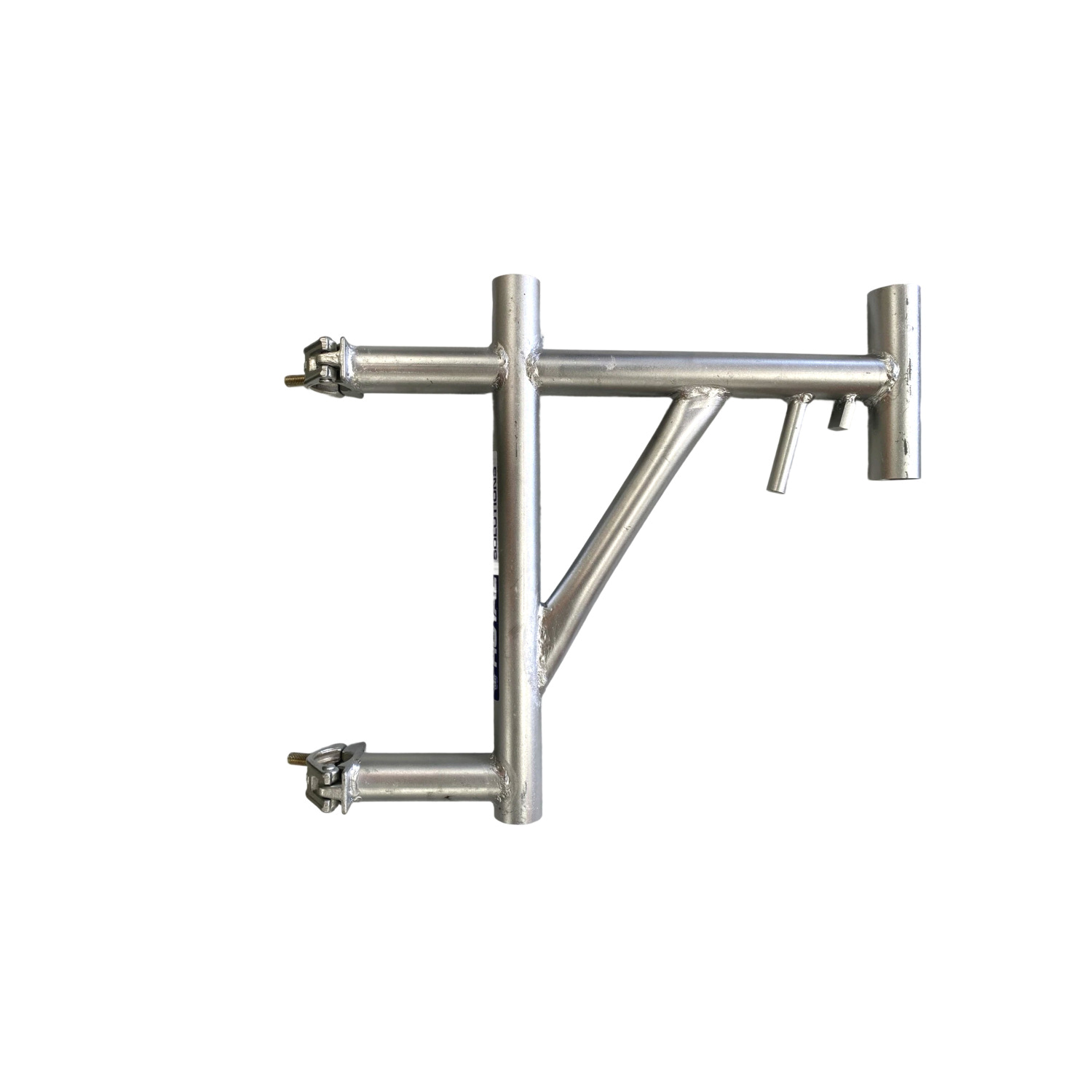

| ROYAL Cantilever Bracket 50 |
600 |
12.50 |
RCB50 |
| ROYAL Cantilever Bracket 60 |
650 |
13.50 |
RCB60 |
