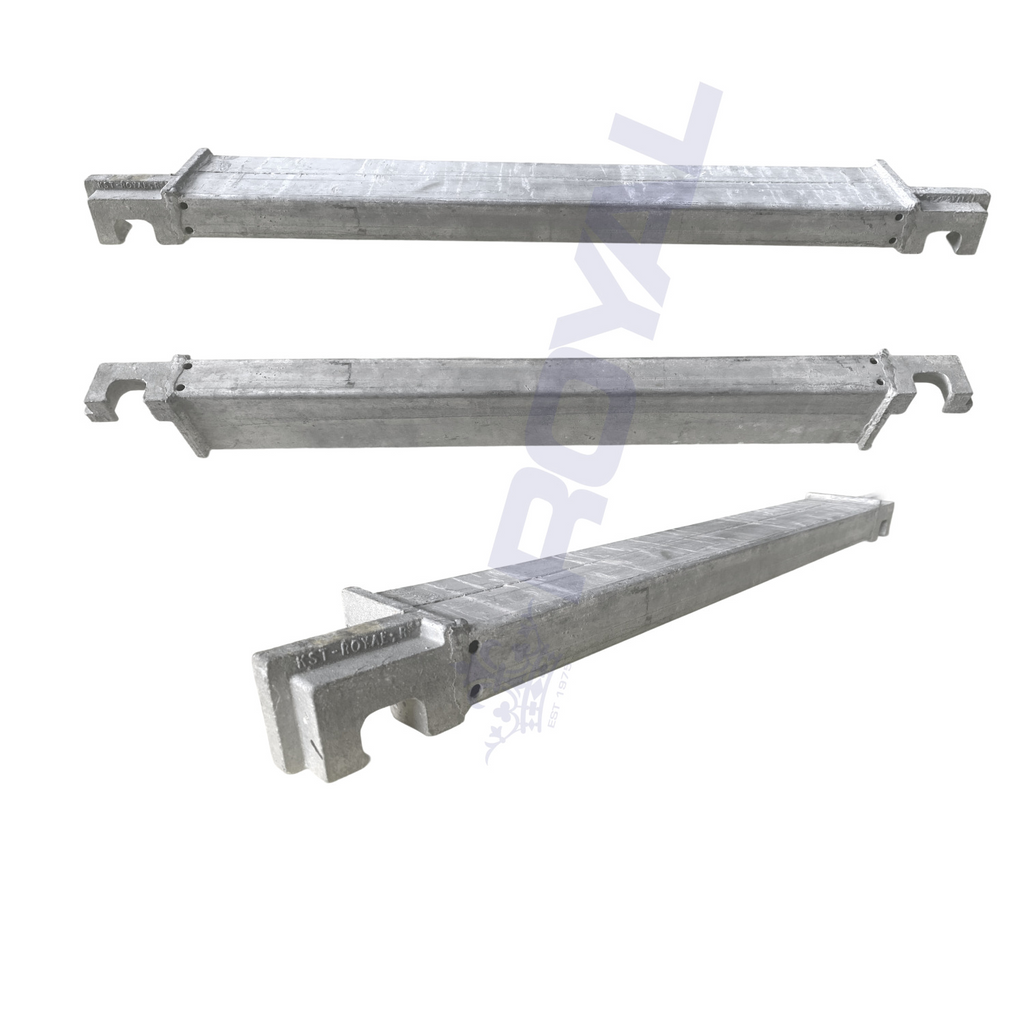

ROYALdek Infill Beam is a practical steel solution for areas where standard ROYALdek panels cannot be used—typically around columns, walls, or tight corners. These infill beams act as joists to support formply or plywood decking, enabling you to complete deck coverage cleanly and efficiently. Designed to be supported by ROYALdek crowns at each end, the beams provide a stable platform for formwork infill between irregular or obstructed zones.
Features + Benefits:
Deck Completion Made Easy: Closes off gaps around walls and columns where panels won’t fit.
Steel Joist Support: Provides reliable structural support for formply or plywood infill.
Quick Integration: Easily supported at both ends using standard ROYALdek crowns.
Two Length Options: Available in 900mm and 1800mm to suit a variety of slab layouts.
Product Uses:
Used in modular slab formwork systems to fill in around obstacles such as columns or walls where full-size ROYALdek panels cannot be installed.
Specifications:
| Description | Length (mm) | Weight (kg) | Code Number |
| ROYALdek Infill Beam | 900 | 5.8 | RDEKIBM09 |
| ROYALdek Infill Beam | 1800 | 10.0 | RDEKIBM18 |
