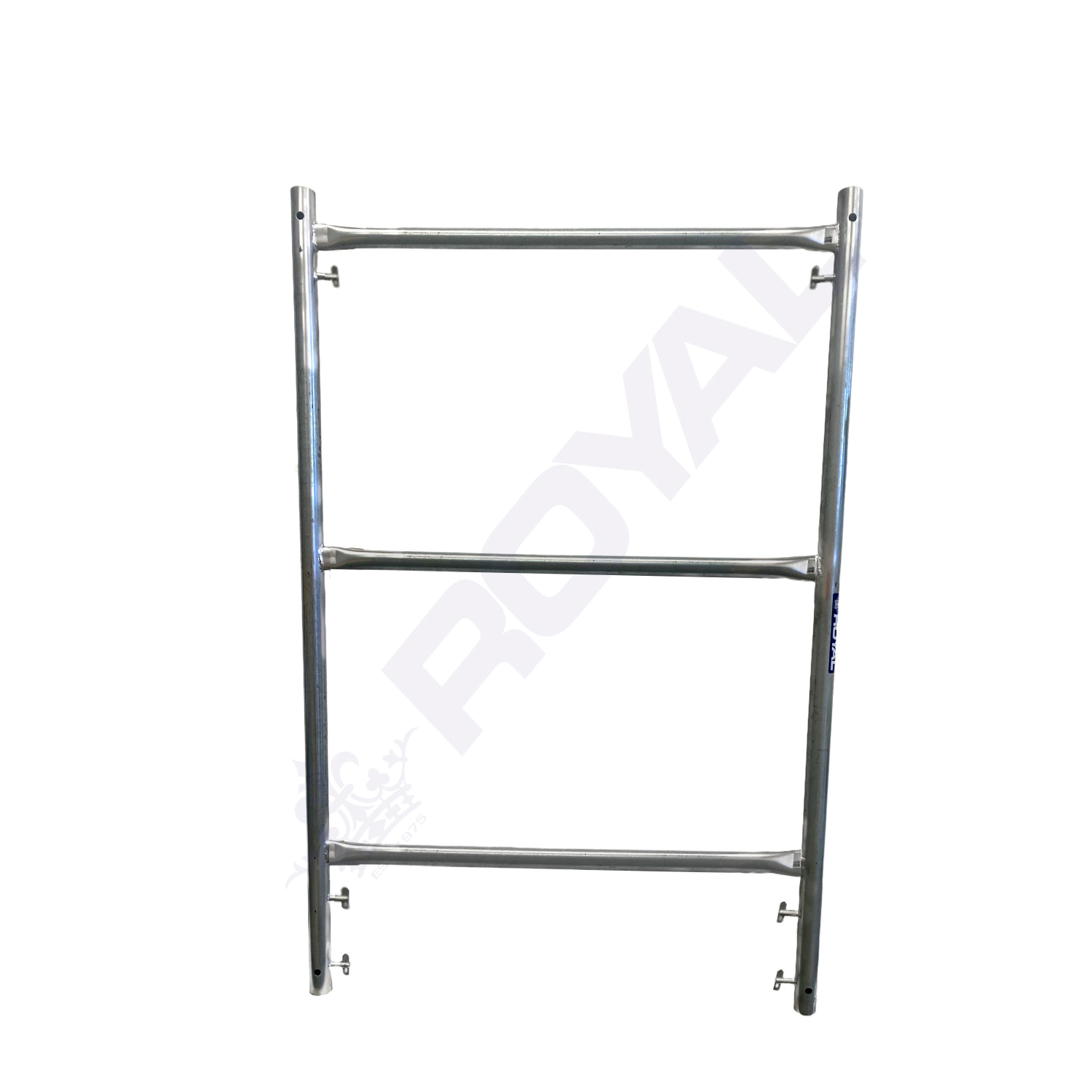

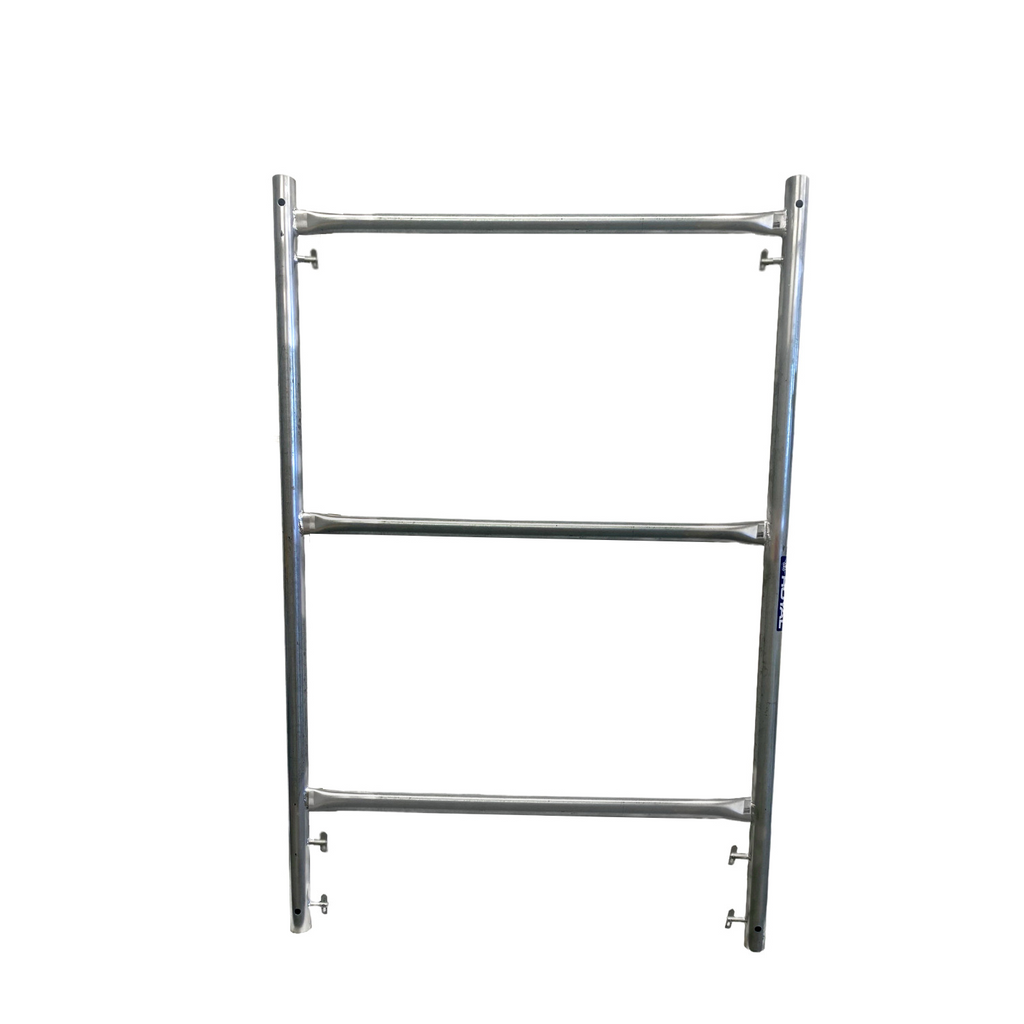

ROYALframe50 is lightweight, high-strength shoring frames designed for fast, safe, and flexible temporary support in formwork systems. Manufactured from seamless galvanised steel tubes (51mm O.D.), both frame types offer a high Safe Working Load (SWL) of 40kN and are certified to Australian Standards.
Shared Features + Benefits:
High Load Capacity: Certified SWL of 40kN per frame.
Seamless Galvanised Steel: Strong, rust-resistant, and long-lasting.
Fast Assembly: Lightweight design makes setup and dismantling quick and easy.
Safe Platform Design: Frames 1500mm and taller feature three horizontal bars for safer working access.
Component Compatibility: Both frame types work with ROYAL jacks, crowns, and braces.
Optimised Transport: 1200mm-wide standard frames fit 2 across on standard truck trays.
Compact Maneuverability: Slim frames are ideal for tight or obstructed spaces.
Standard ROYALframe50
| Description |
Width (mm) |
Height (mm) |
Weight (kg) |
Code Number |
| ROYALframe50 |
1200 |
600 |
10.0 |
RF5006 |
| ROYALframe50 |
1200 |
900 |
13.5 |
RF5009 |
| ROYALframe50 |
1200 |
1200 |
17.0 |
RF5012 |
| ROYALframe50 |
1200 |
1500 |
21.0 |
RF5015 |
| ROYALframe50 |
1200 |
1800 |
24.0 |
RF5018 |
| ROYALframe50 |
1200 |
2100 |
27.0 |
RF5021 |
| ROYALframe50 |
1200 |
2400 |
30.0 |
RF5024 |
