Formwork Shoring H Type Frame 60

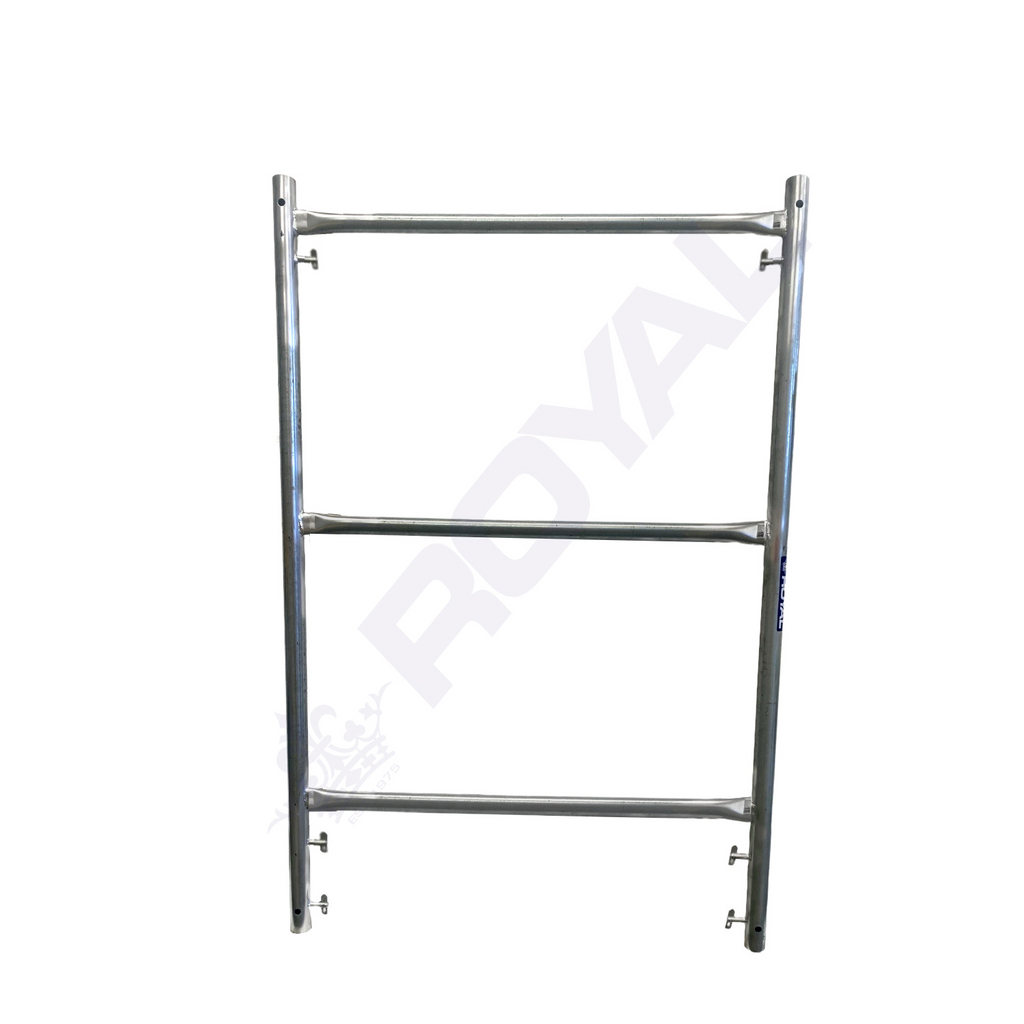

The ROYALframe60 is a robust, conventional formwork shoring frame built for heavy-duty performance. Featuring galvanized tube legs with a 60mm outside diameter, it supports a safe working load of 45kN and is manufactured in accordance with Australian Standards. Designed using the Imperial measurement system, it offers a consistent frame width of 1280mm (50.39 inches) and height options ranging from 2ft to 7ft (610mm to 2134mm).

Features + Benefits:

Heavy-Duty Construction: Galvanised frame built to handle up to 45kN of safe working load.
Consistent Width: Frame width fixed at 1280mm across all height variants for uniform compatibility.
Strong Bracing System: Features V-shaped tubular bracing between legs and dual horizontal bars for enhanced stability.
Smart Design: Drop latch pins positioned 150mm from top and bottom of legs (on 6ft frame) for easy and secure connection.
Product Uses: Ideal for slab shoring in construction environments requiring durable, stable, and certified formwork support.
Pack Size:

Description	Height (ft)	Length (mm)	Weight (kg)	Code Number
ROYALframe60 2ft	2	610	11.30	RF602
ROYALframe60 3ft	3	915	15.80	RF603
ROYALframe60 4ft	4	1220	18.10	RF604
ROYALframe60 5ft	5	1525	22.10	RF605
ROYALframe60 6ft	6	1830	25.10	RF606
ROYALframe60 7ft	7	2134	28.10	RF607
