Royal Column Clamps

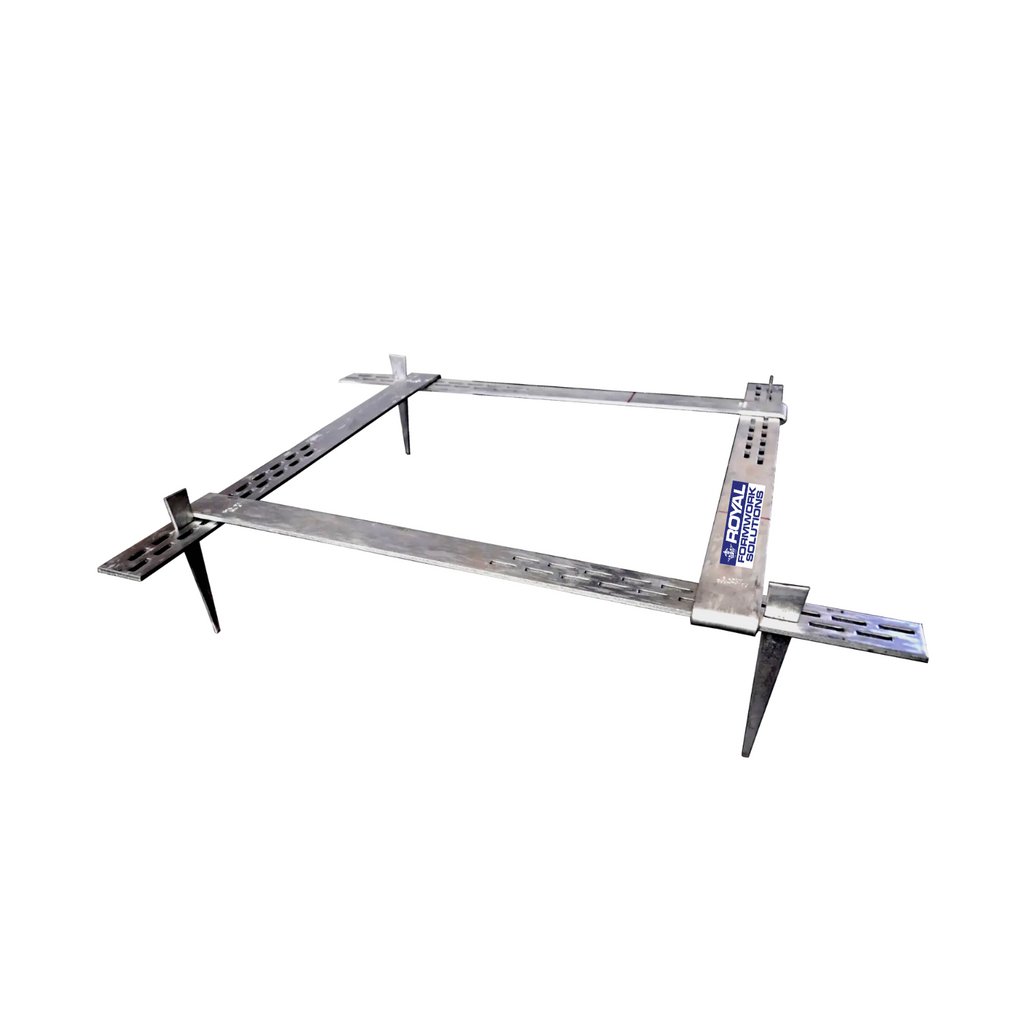

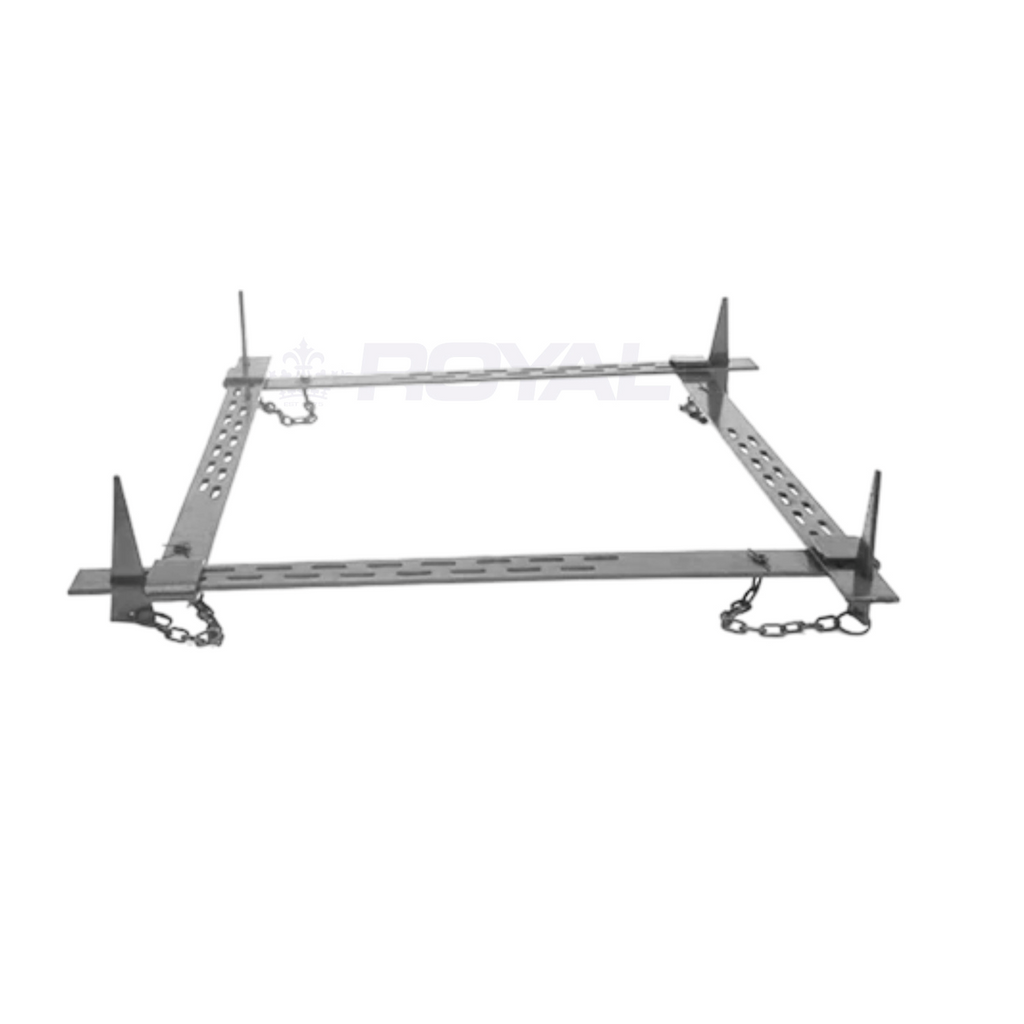

ROYAL Column Clamps are designed for forming square and rectangular concrete columns in construction projects. Featuring flat bars with cupped ends and staggered slots, these clamps allow for a wide range of adjustment within each size. The simple wedge connection system ensures fast assembly and easy removal, improving efficiency on site. Available in three arm lengths to suit various column dimensions.

Features + Benefits:

Adjustable Design: Staggered slots and cupped ends provide extensive adjustment to accommodate different column sizes.
Quick Assembly: Simple wedge connection enables fast installation and easy stripping.
Durable Construction: Robust flat bar design ensures strength and reliability on site.

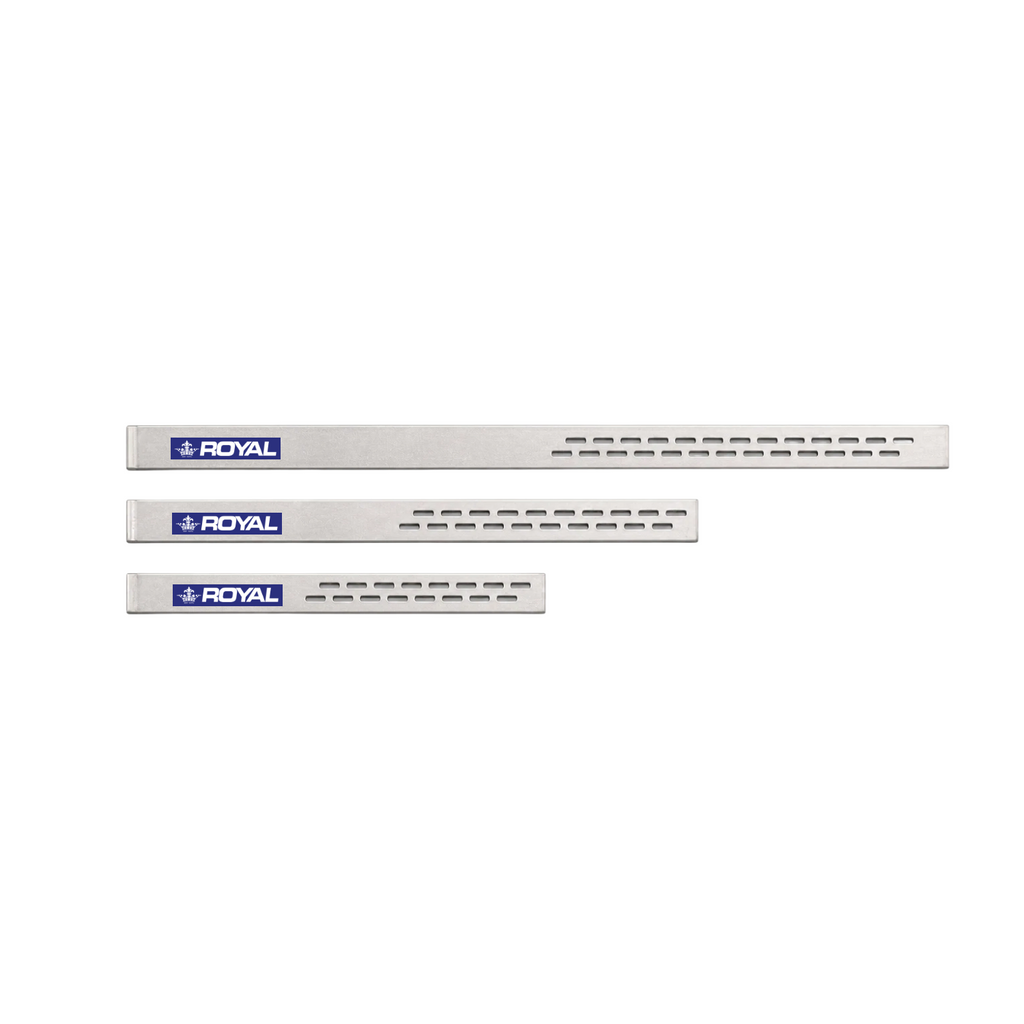

Multiple Sizes: Three arm lengths available to suit a variety of column dimensions.

Product Uses:

Concrete Formwork: Ideal for securing and aligning formwork when constructing square or rectangular concrete columns.

Pack Size:

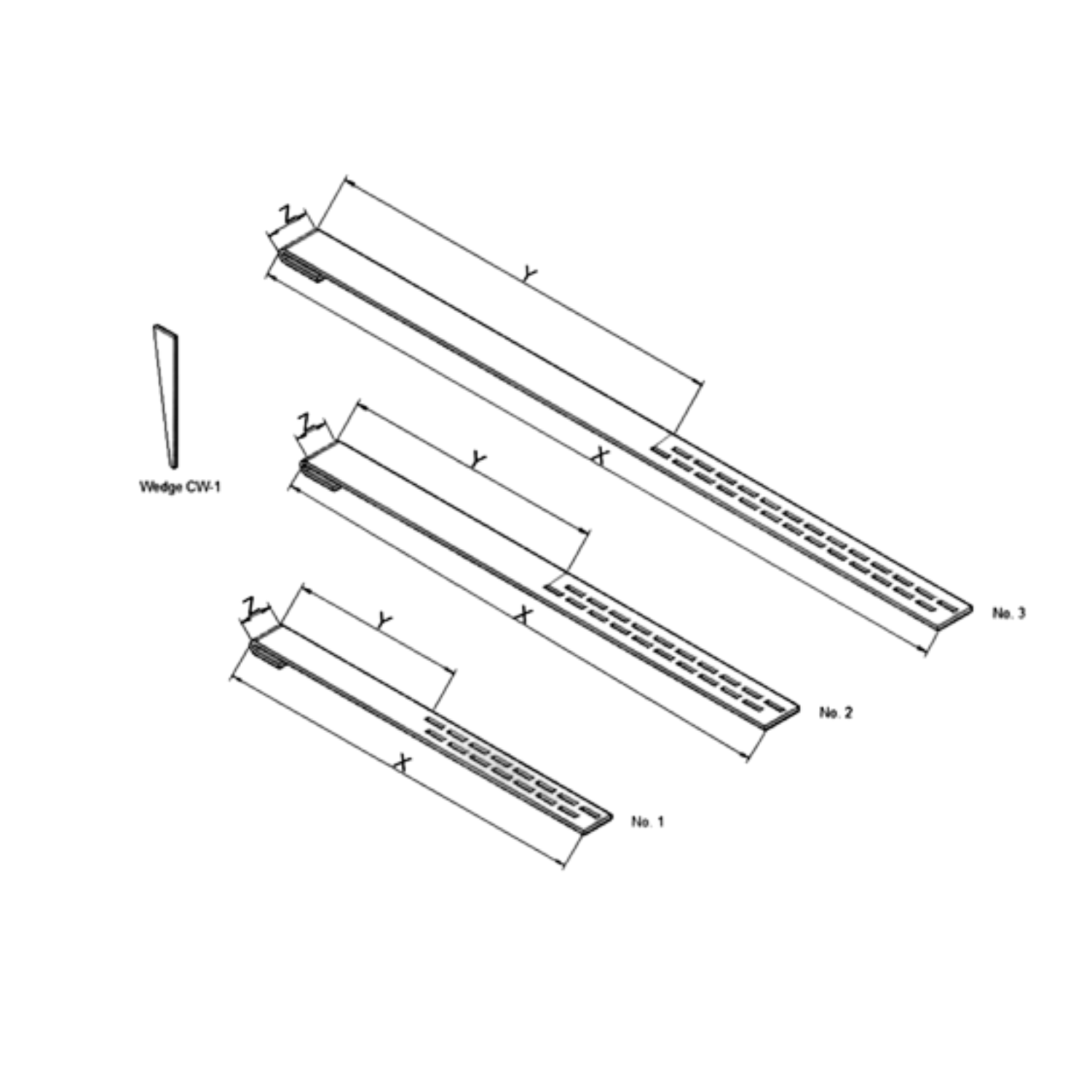

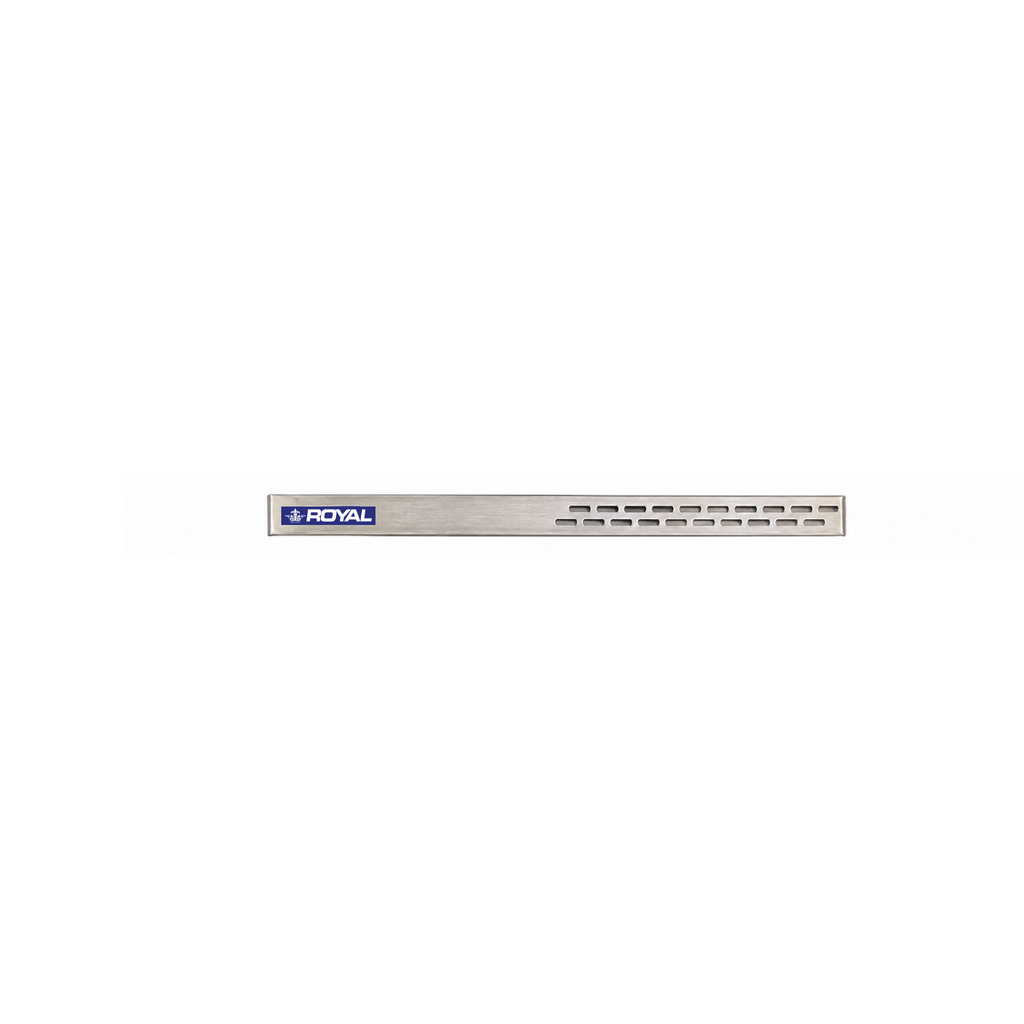

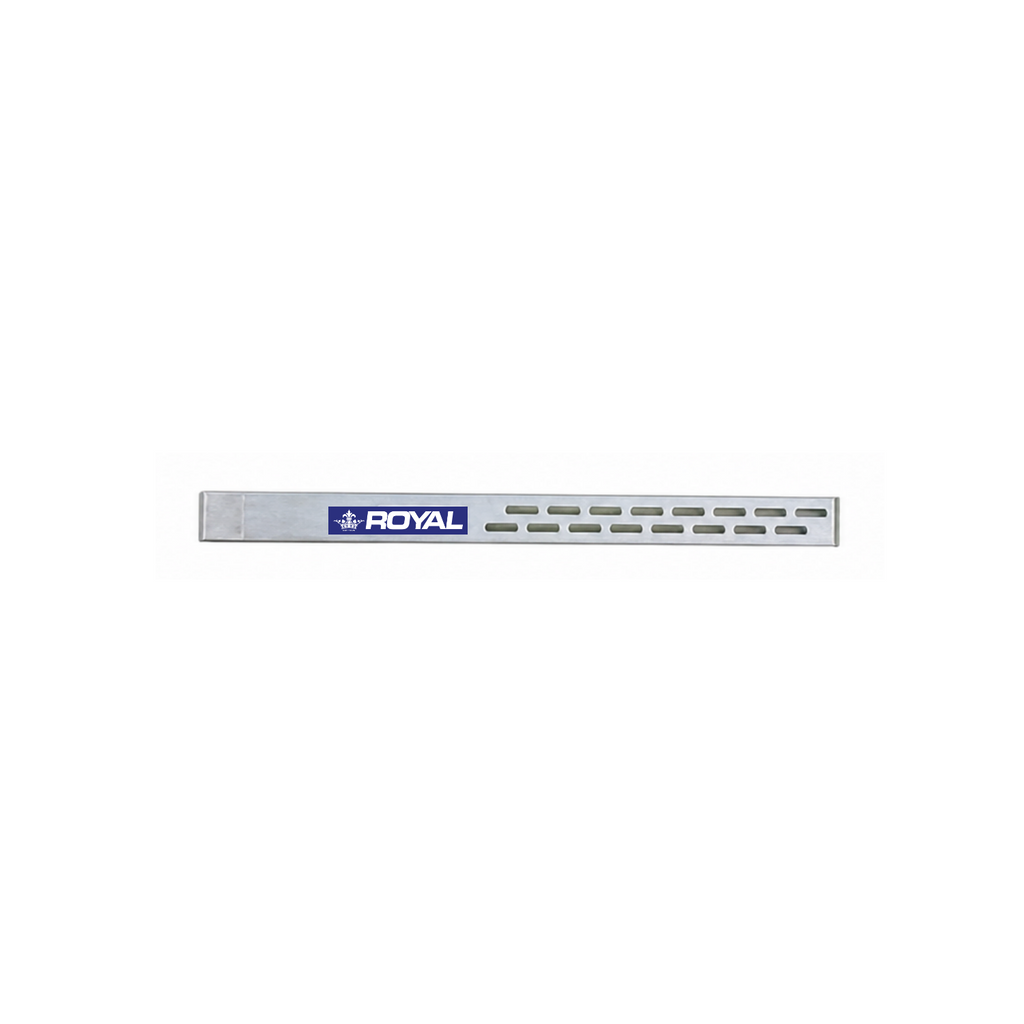

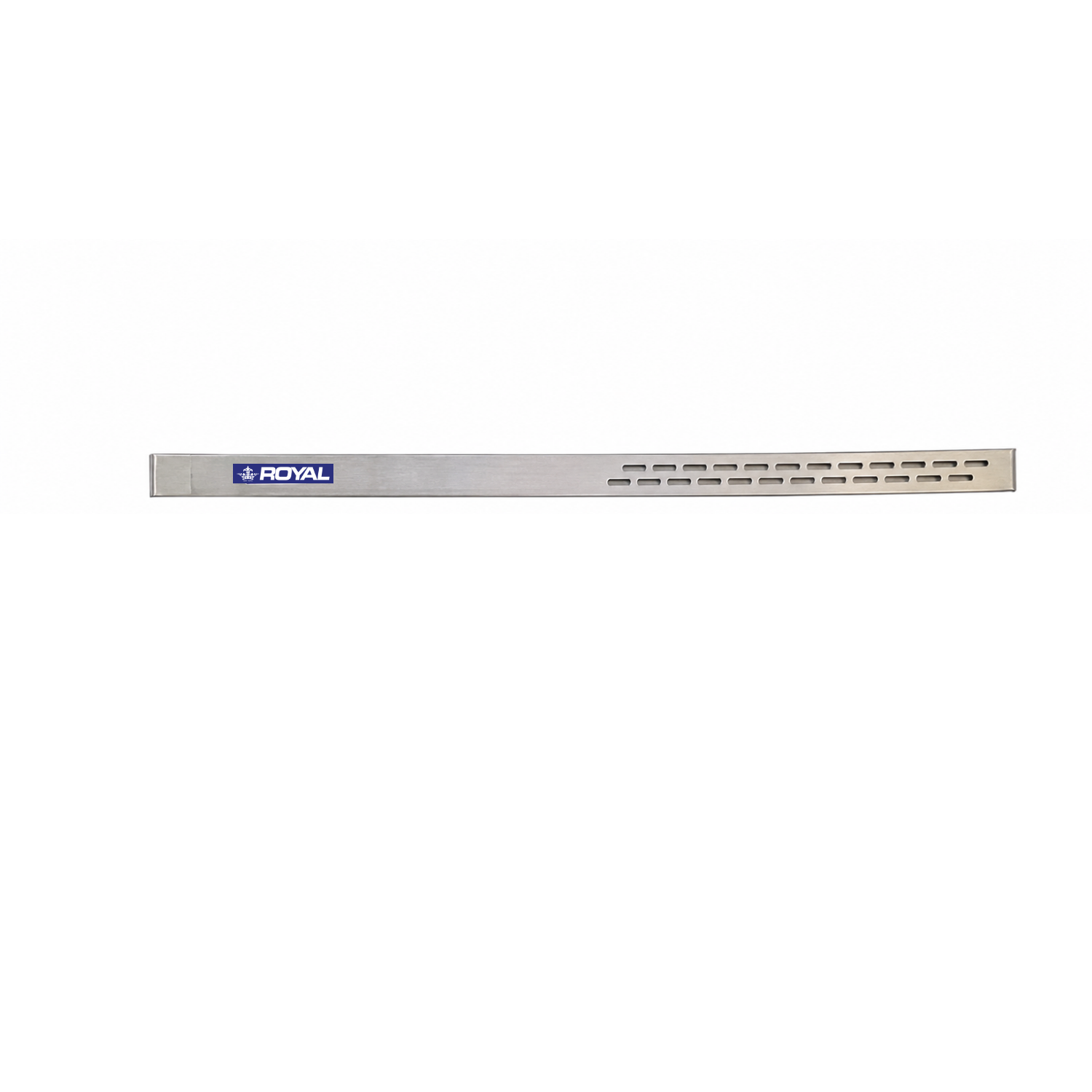

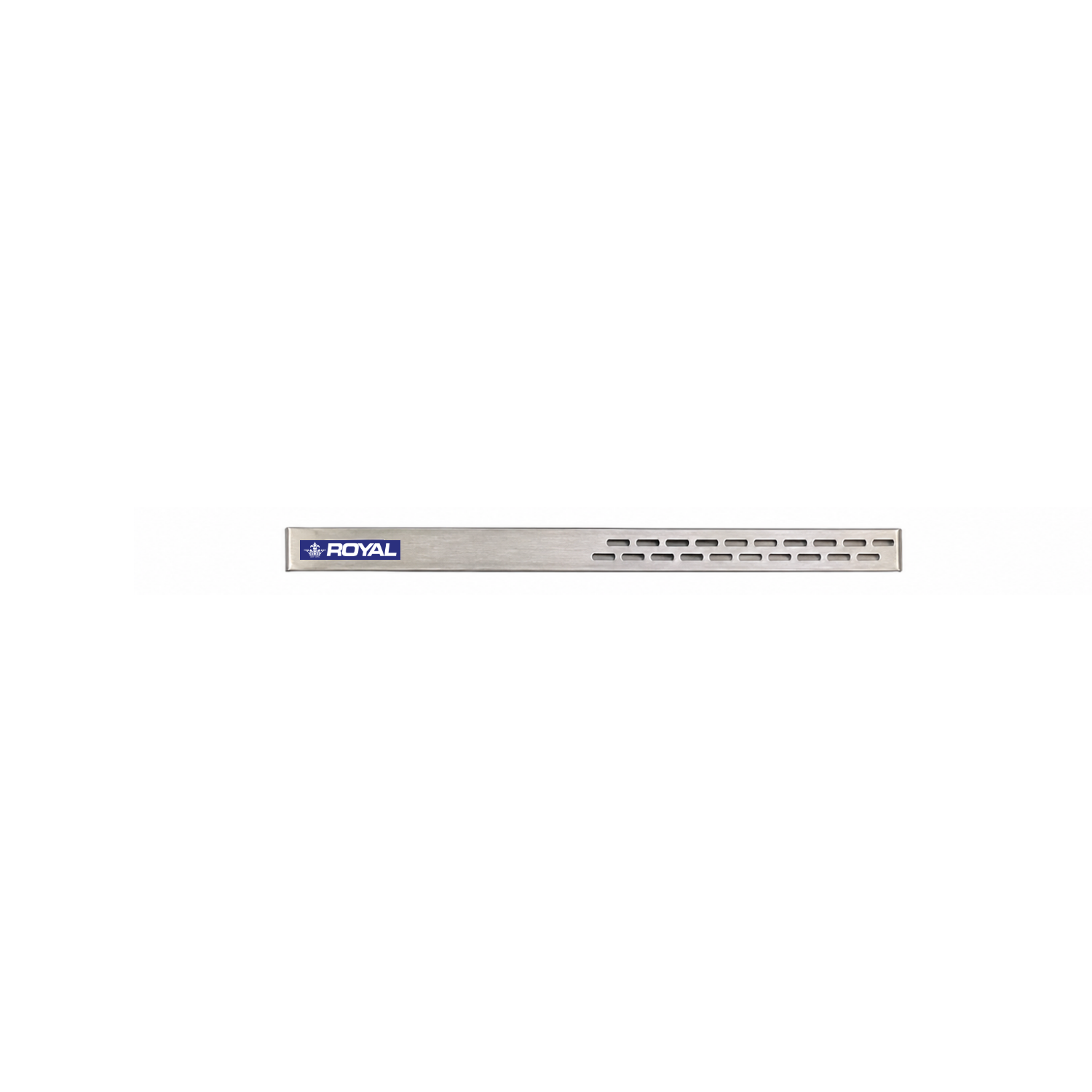

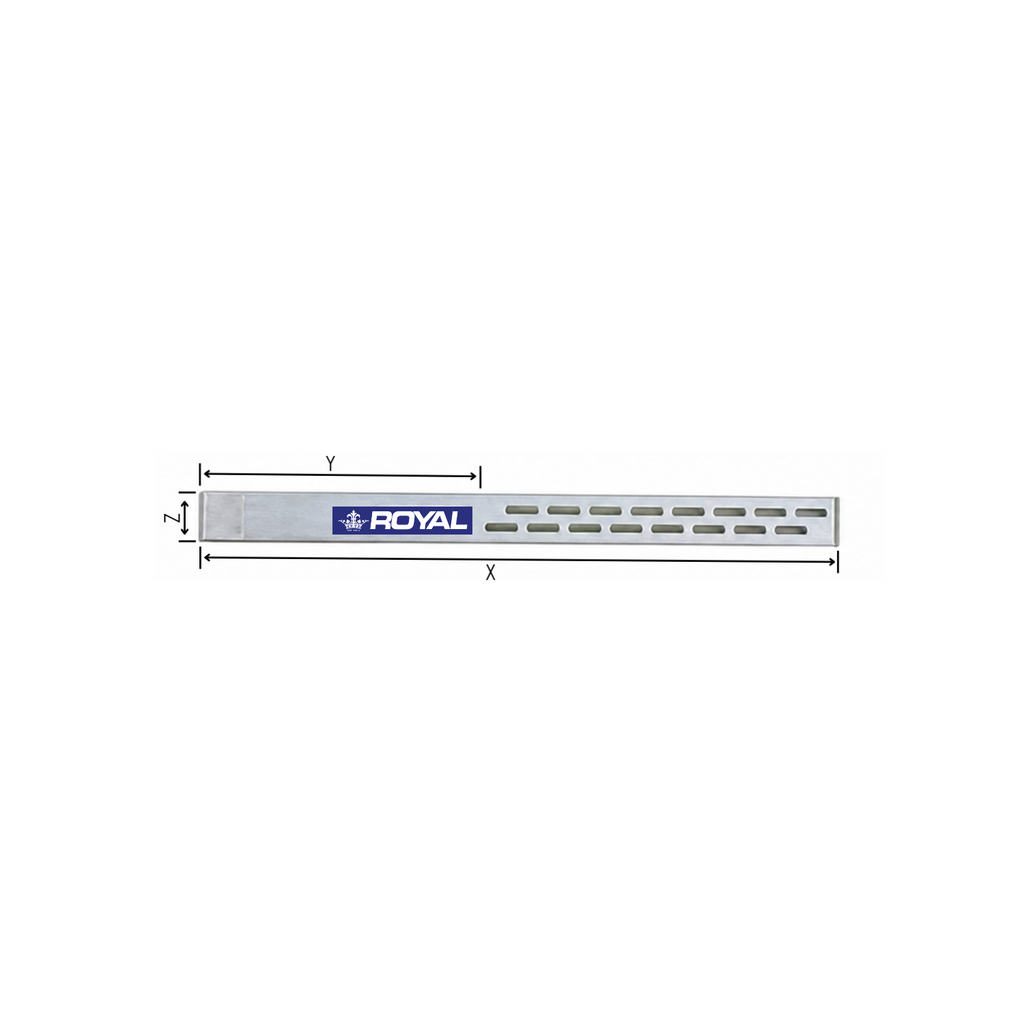

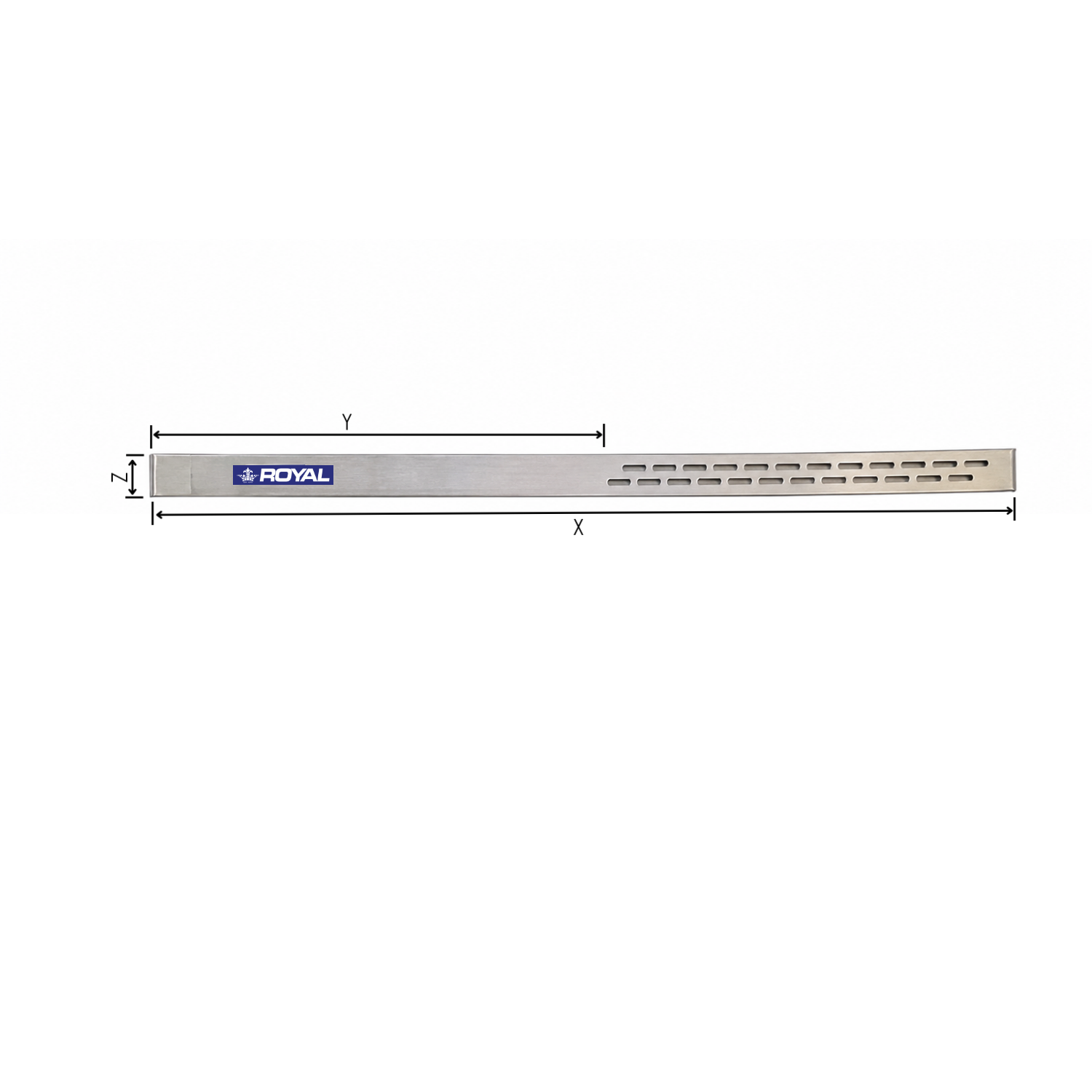

ROYAL Column Clamp No 1 (Code: RCC1): Arm Length (x): 740mm, (y): 325mm, (z) Width: 60.8mm, Weight: 3.25kg per unit.
ROYAL Column Clamp No 2 (Code: RCC2): Arm Length (x): 1030mm, (y): 510mm, (z)Width: 60.8mm, Weight: 4.50kg per unit.
ROYAL Column Clamp No 3 (Code: RCC3): Arm Length (x): 1460mm, (y): 765mm, (z) Width: 60.8mm, Weight: 6.50kg per unit.
ROYAL Column Clamp Wedge (Code: RCCW): Width: 60.8mm, Weight: 0.30kg per unit.

*See drawing/photos
