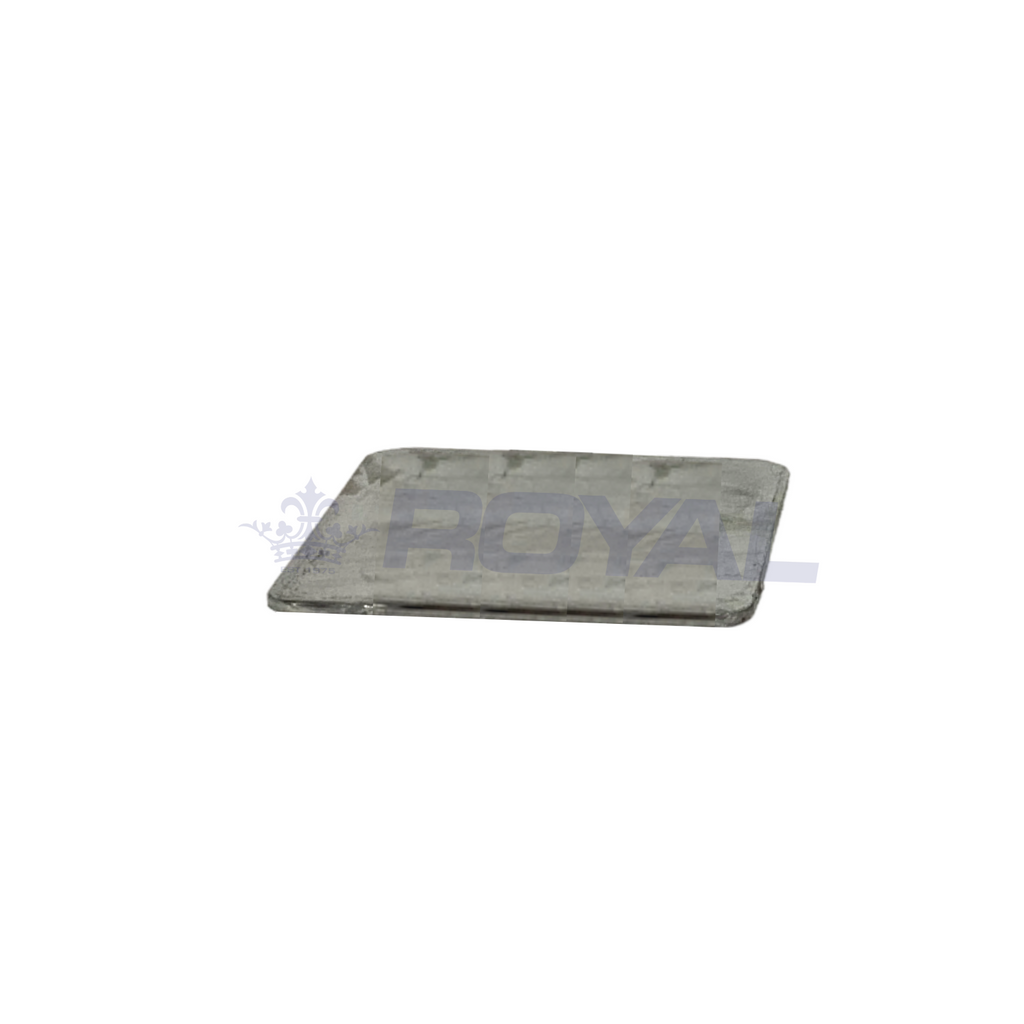

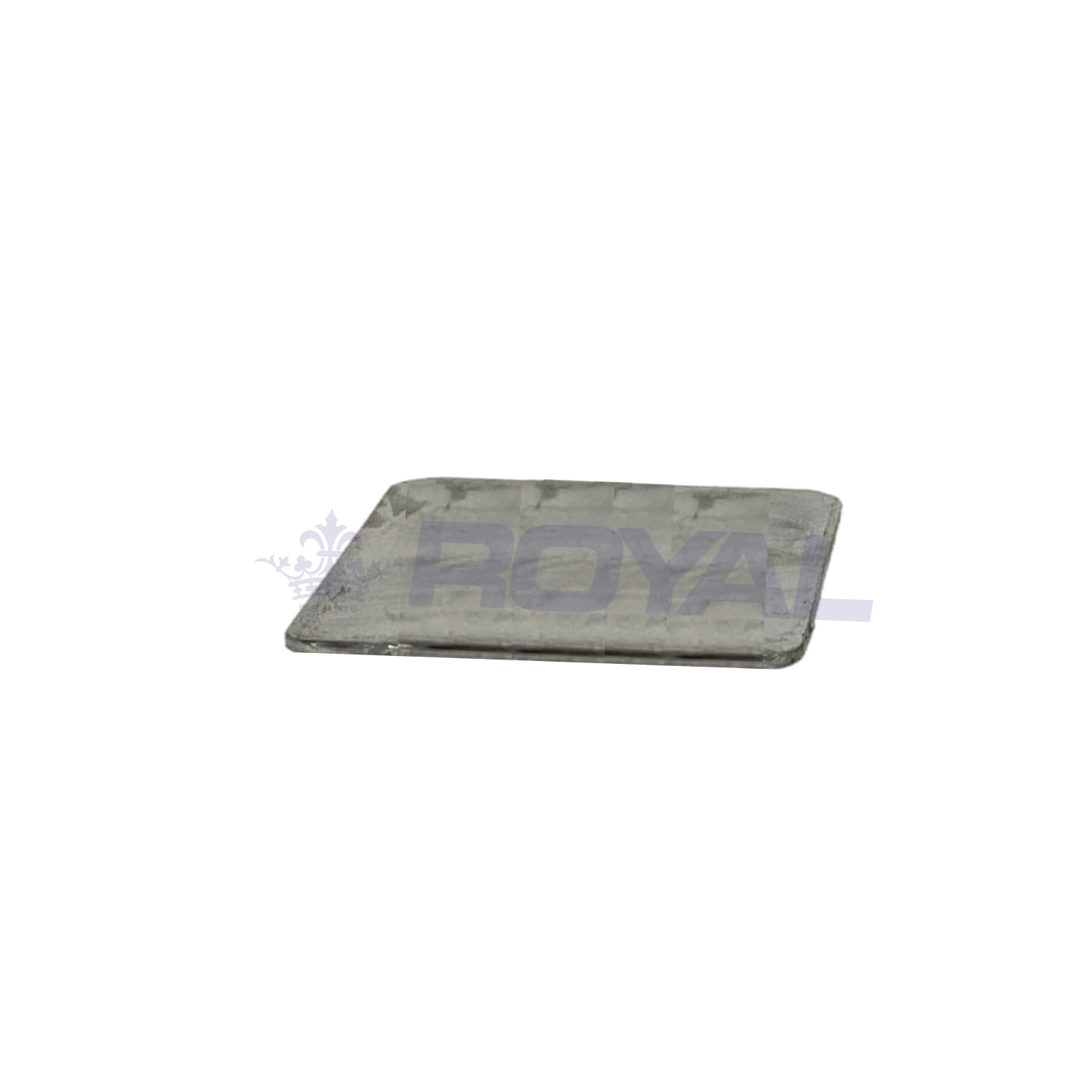

ROYAL Frame Base Plates are essential components for safely distributing the load from formwork shoring frames to the supporting surface. Positioned under the vertical legs of the ROYALframe50 system, these plates help maintain overall system stability—even under varying load conditions. They are particularly suited for use on flat, level surfaces such as freshly poured concrete where adjustable jacks are not required.
Two types are available to suit different installation preferences: a standard flat base plate that can be slid under the frame leg after assembly, and a base plate with a spigot that provides a secure, locked-in position during setup.
Features + Benefits:
Load Distribution: Spreads vertical load evenly to the supporting structure below.
System Stability: Helps maintain secure footing under various load combinations.
Simple Installation: Options for both pre-assembly and post-assembly use.
Durable Construction: Made to withstand tough site conditions.
Product Uses:
Used at the base of ROYALframe50 systems on solid, level ground or freshly poured concrete where jack adjustability is not needed.
Specifications:
| Description |
Weight (kg) |
Code Number |
| ROYALframe Base Plate |
0.70 |
RFBP |
| ROYALframe Base Plate with Spigot |
1.00 |
RFBPS |
