Scaffold Couplers are essential components used to secure scaffold tubes and props in various bracing configurations. Designed for both fixed and swivel connections, these couplers enable stable and safe setups for horizontal and inclined bracing between inner and outer prop tubes and standard scaffold tubes. Whether bracing between 48.3mm (2") inner tubes or connecting 60.3mm (3") or larger outer tubes, ROYAL’s couplers offer the strength and versatility required on-site.
Features + Benefits:
Versatile Fit: Available in multiple size combinations (2x2, 3x2, 4x2) to suit various prop and scaffold tube configurations.
Fixed & Swivel Options: Choose fixed couplers for horizontal bracing or swivel couplers for inclined setups.
Heavy-Duty Steel Construction: Built to withstand the rigours of structural bracing on active construction sites.
Secure Locking: Engineered to provide a tight, reliable grip that maintains alignment and stability.
Product Uses:

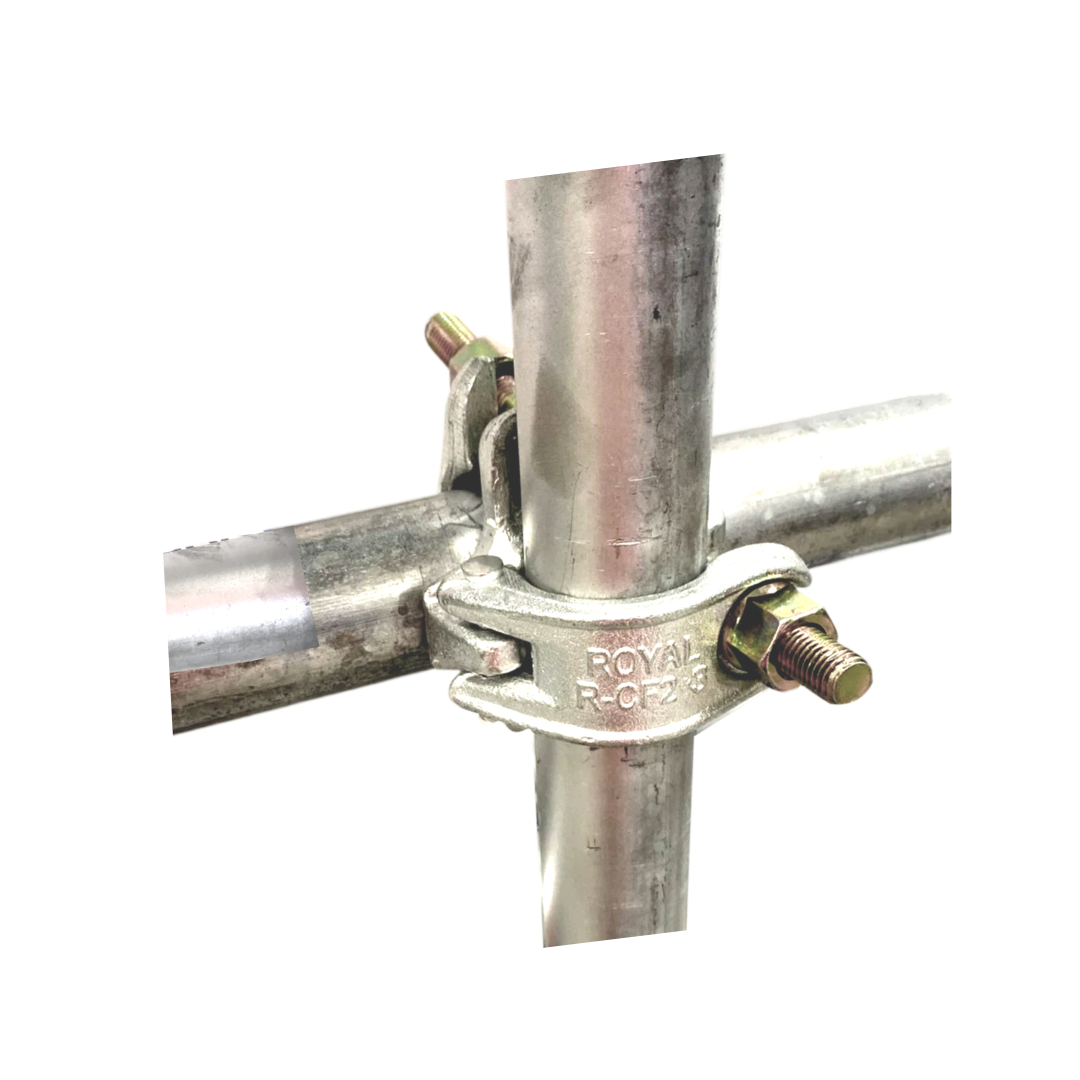

Used to brace scaffold and prop systems in horizontal or angled applications across formwork, shoring, and scaffolding structures.
Specifications:
| Description | Diameter (mm) | Weight (kg) | Code Number |

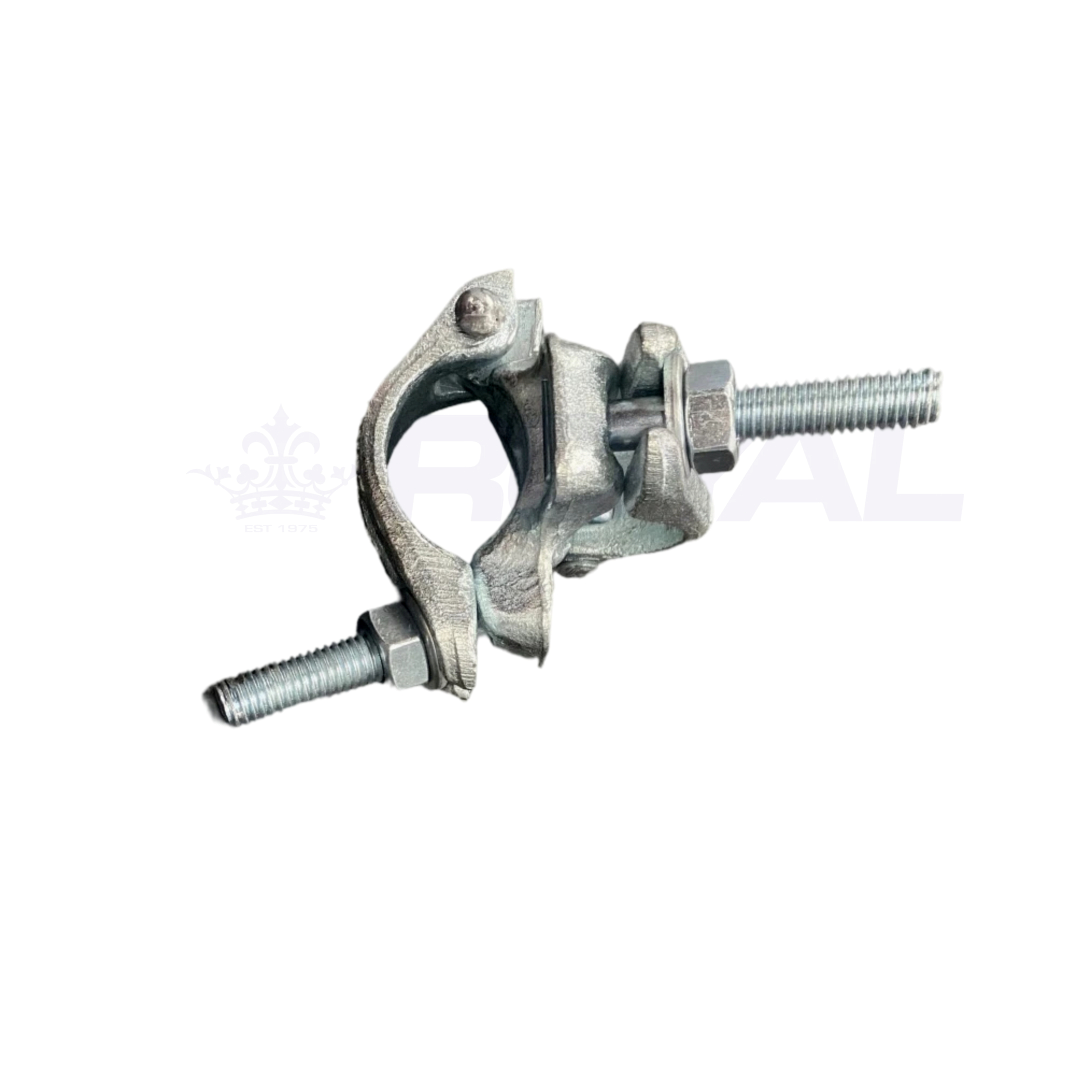

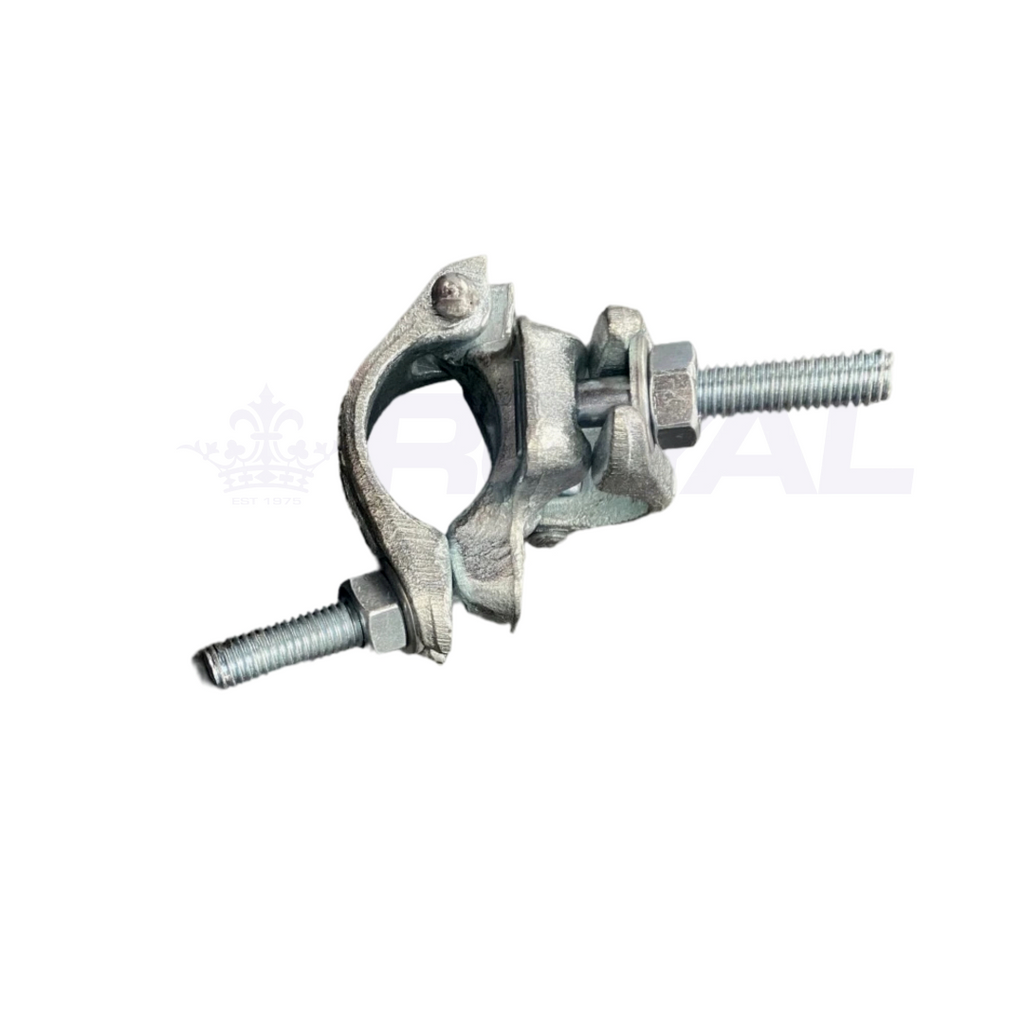

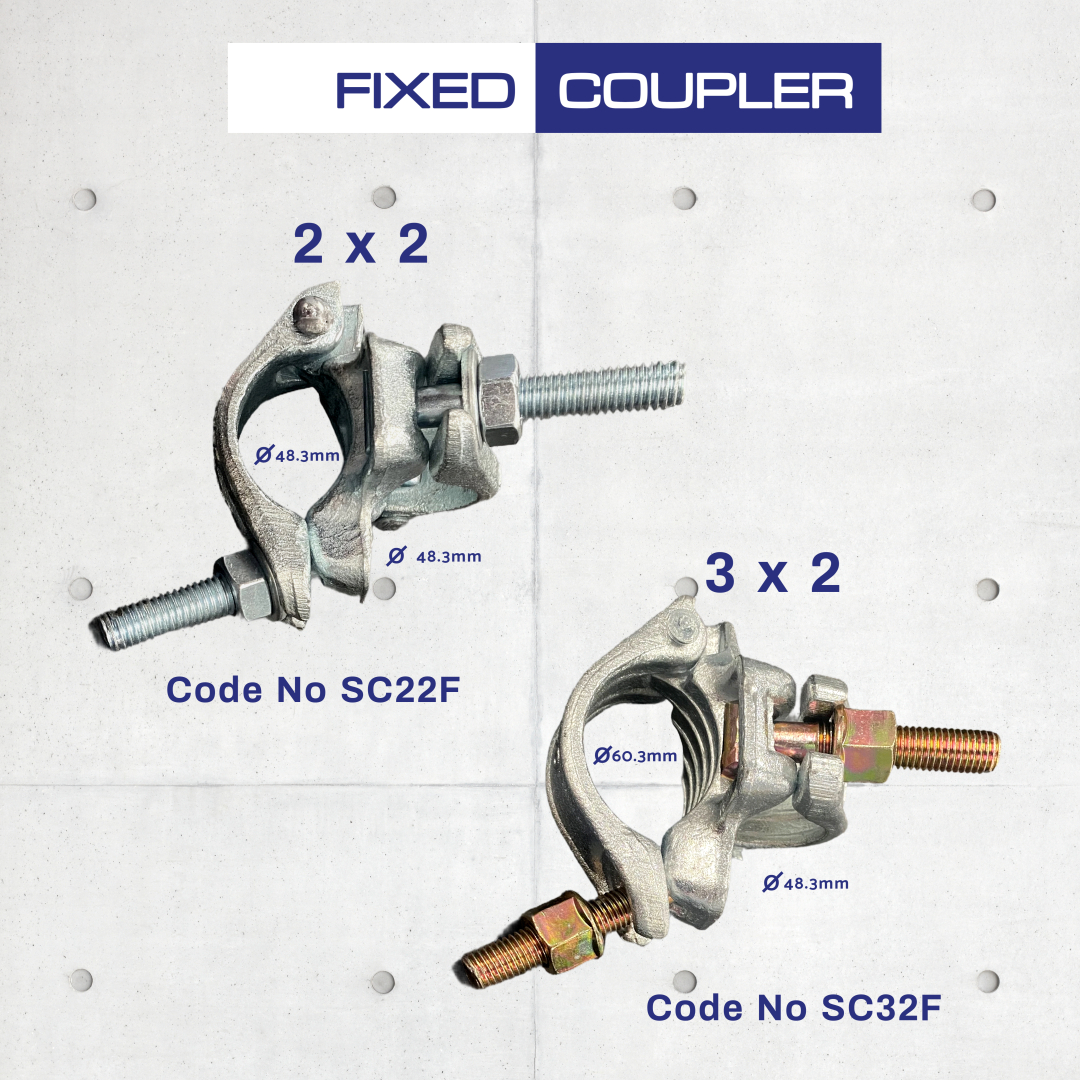

| Scaffold Coupler 2x2 Fixed | 48 x 48 | 0.99 | SC22F |

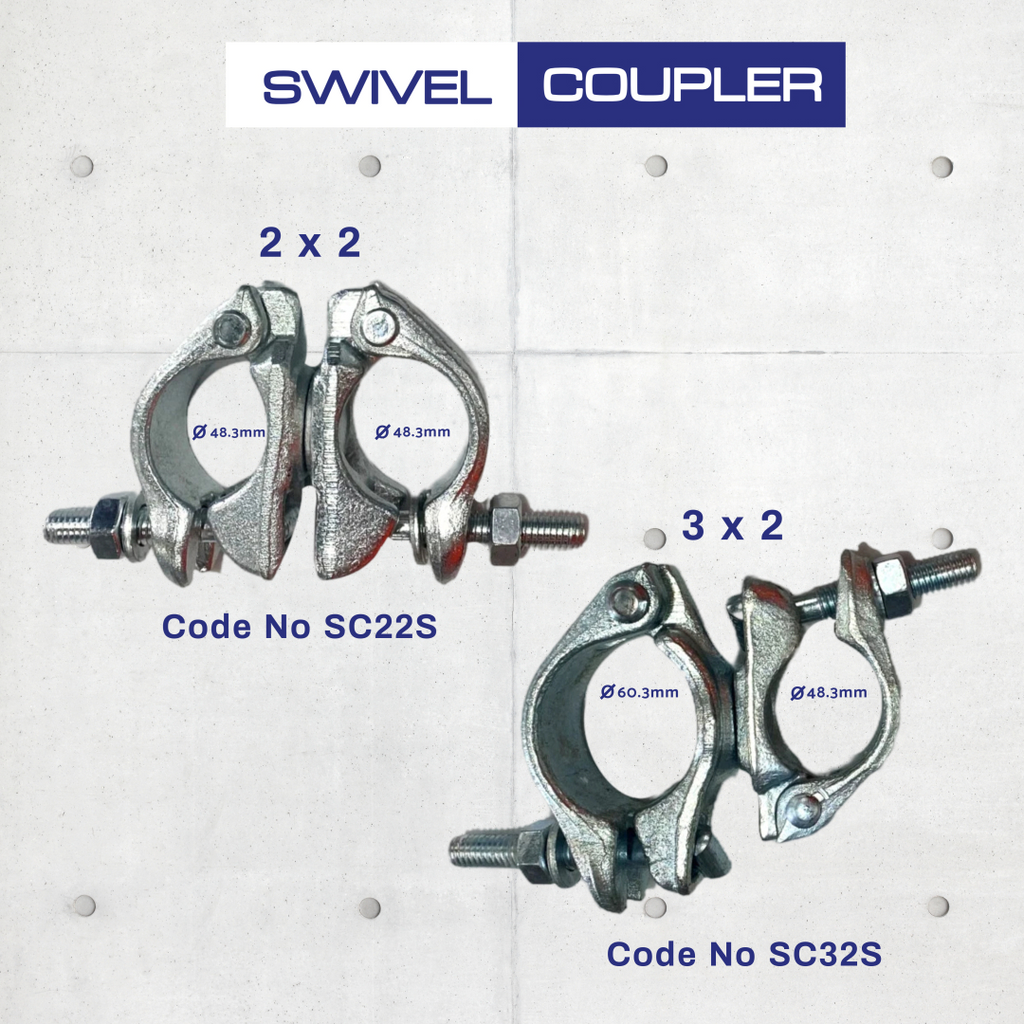

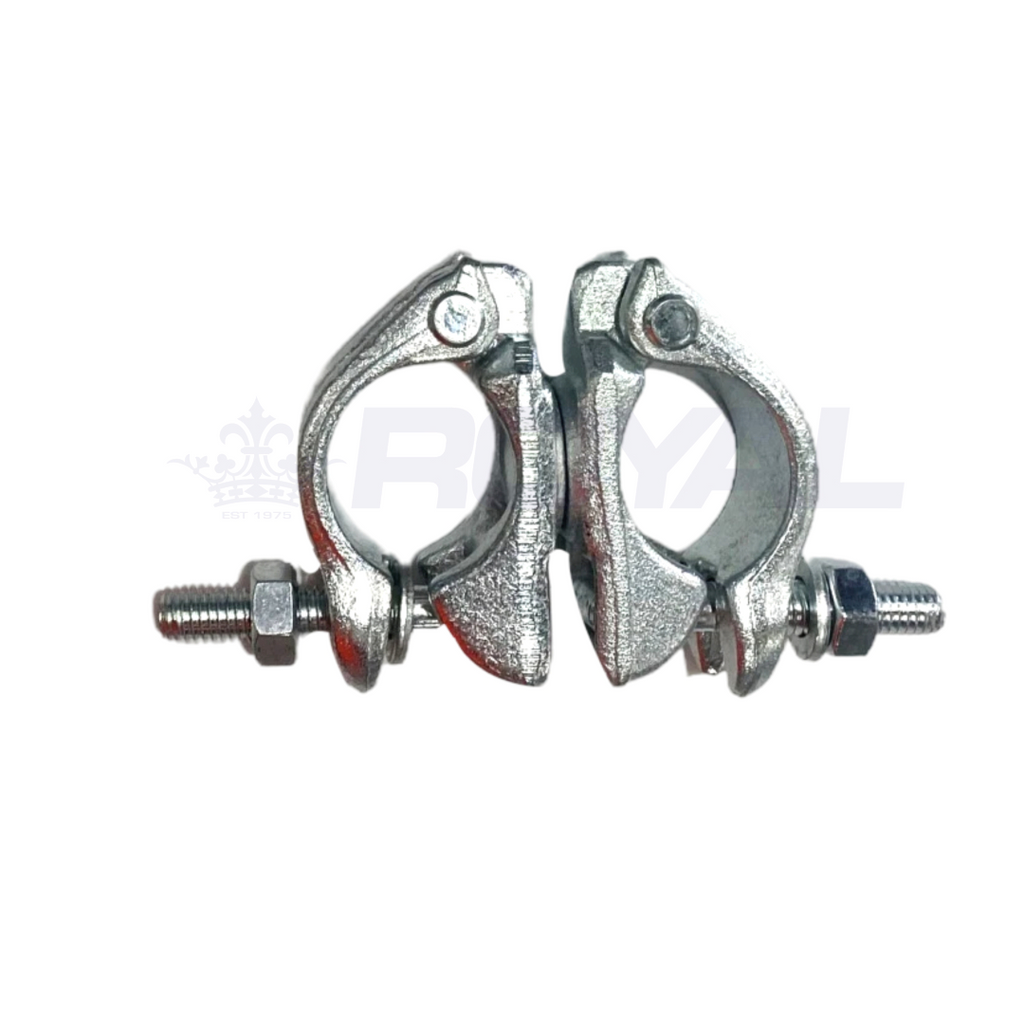

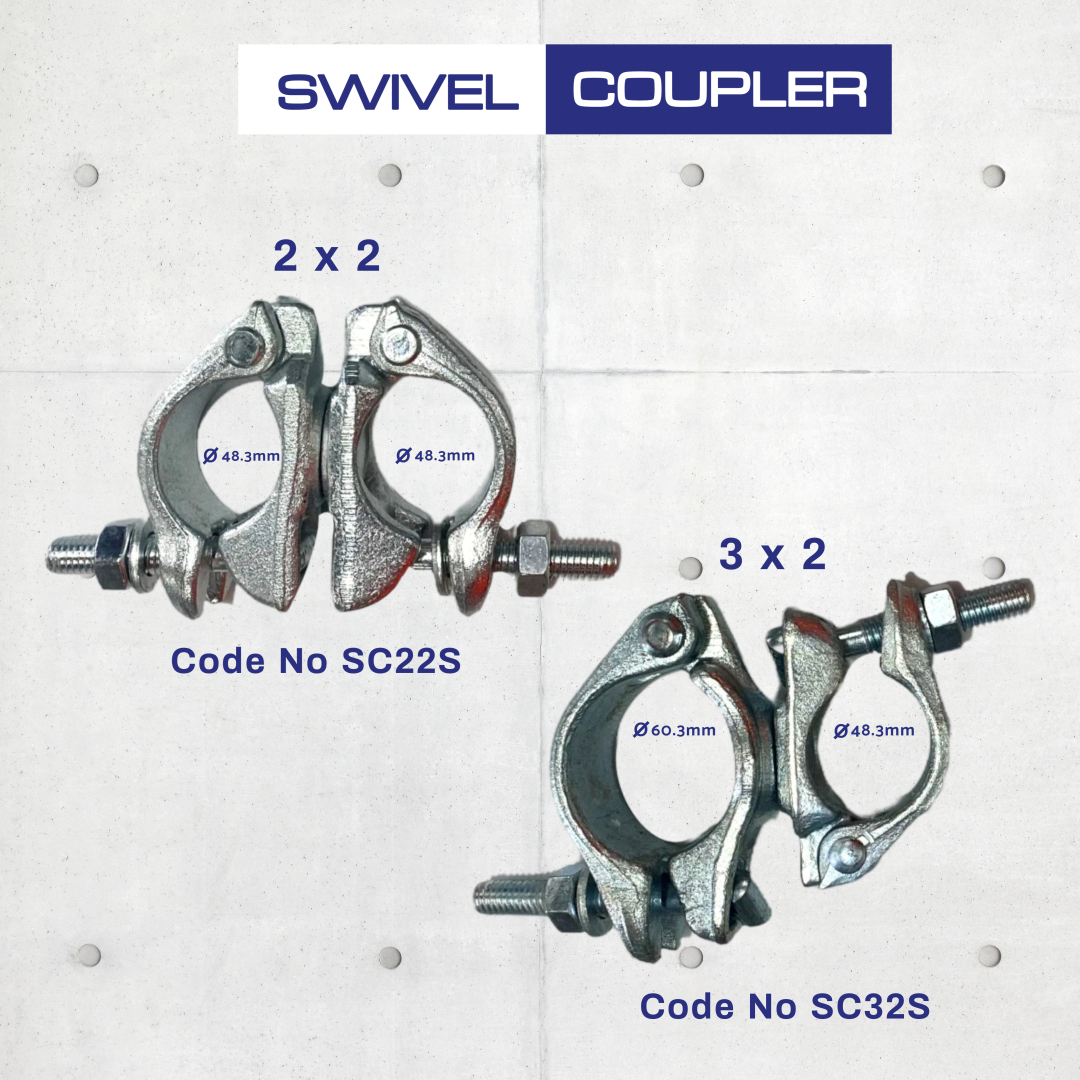

| Scaffold Coupler 2x2 Swivel | 48 x 48 | 1.08 | SC22S |

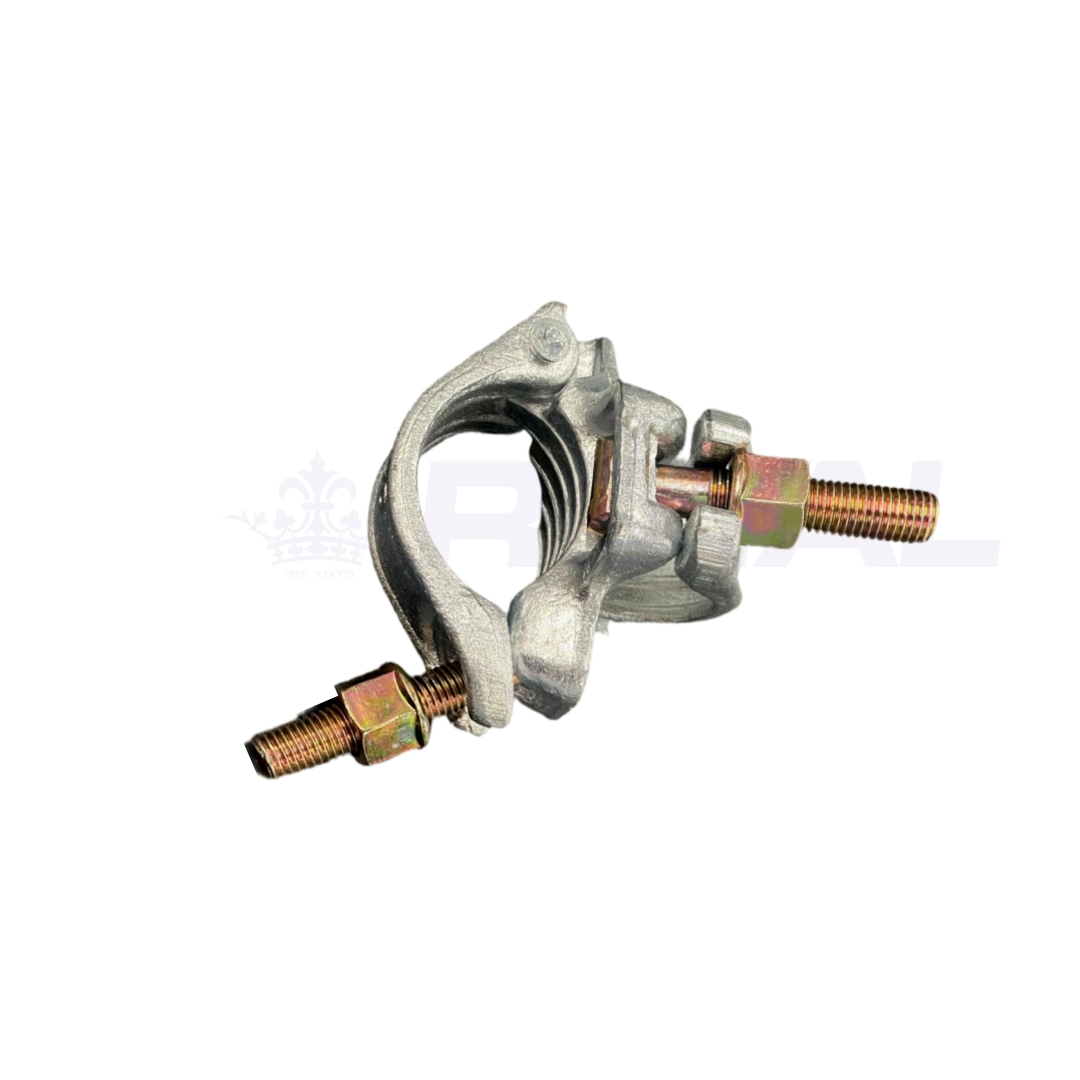

| Scaffold Coupler 3x2 Fixed | 60 x 48 | 1.46 | SC32F |
| Scaffold Coupler 3x2 Swivel | 60 x 48 | 1.52 | SC32S |

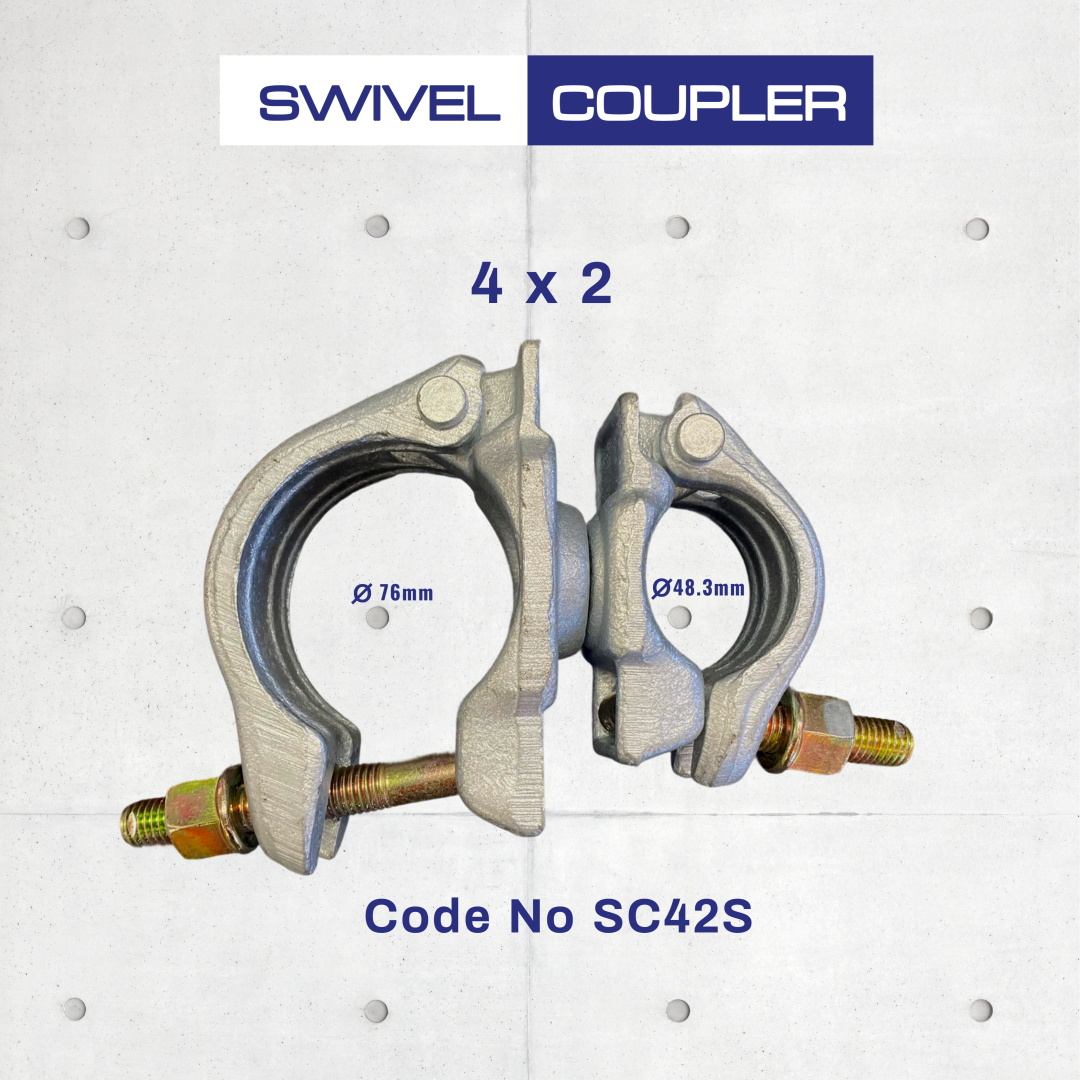

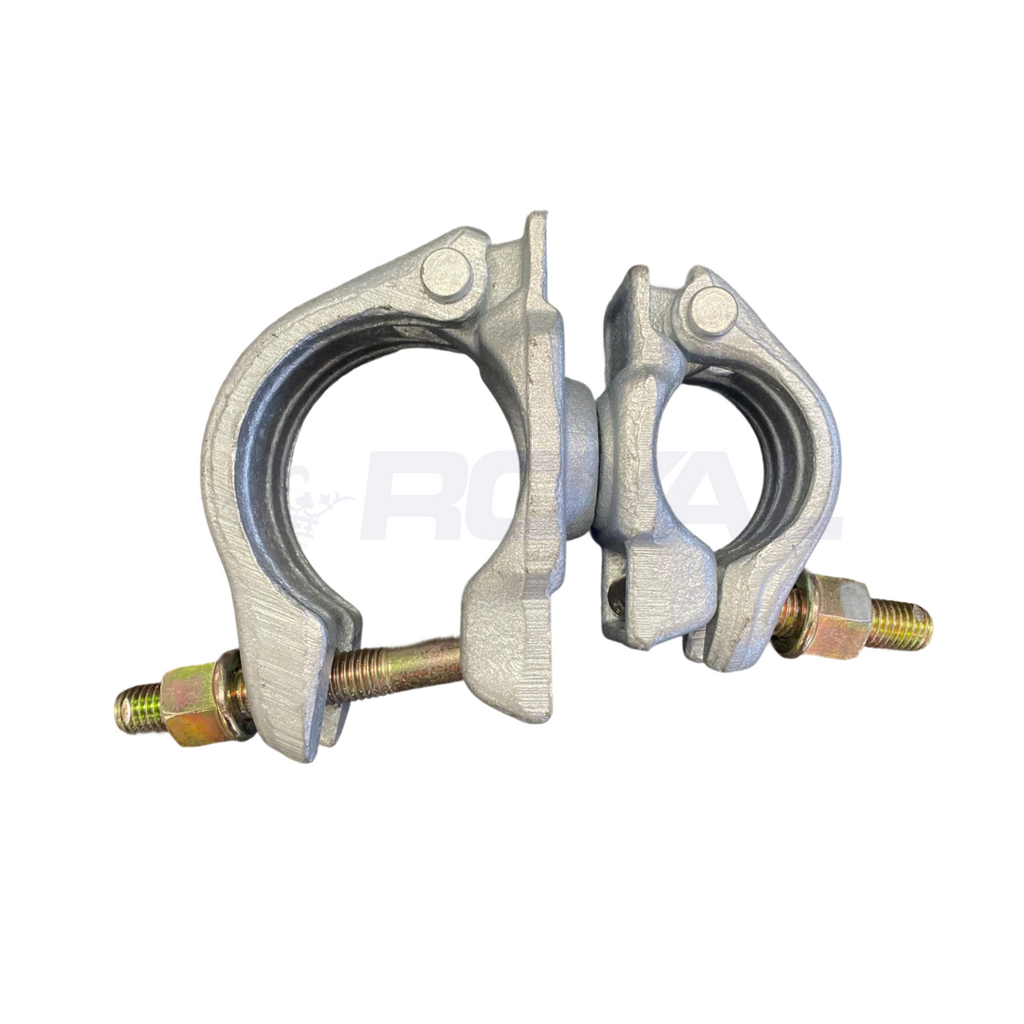

| Scaffold Coupler 4x2 Swivel | 72 x 48 | 1.95 | SC42S |
