Z Bar Concrete Anchor

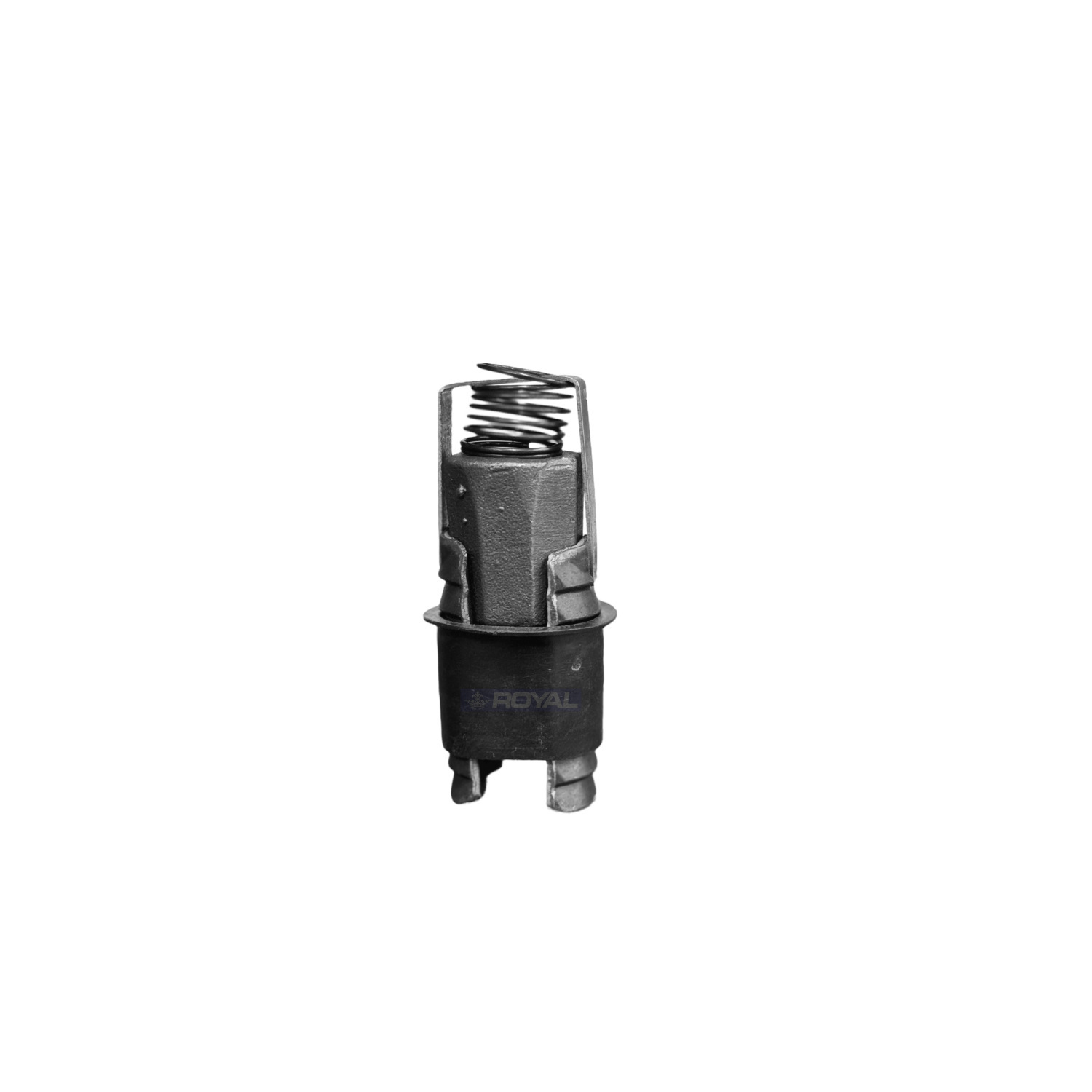

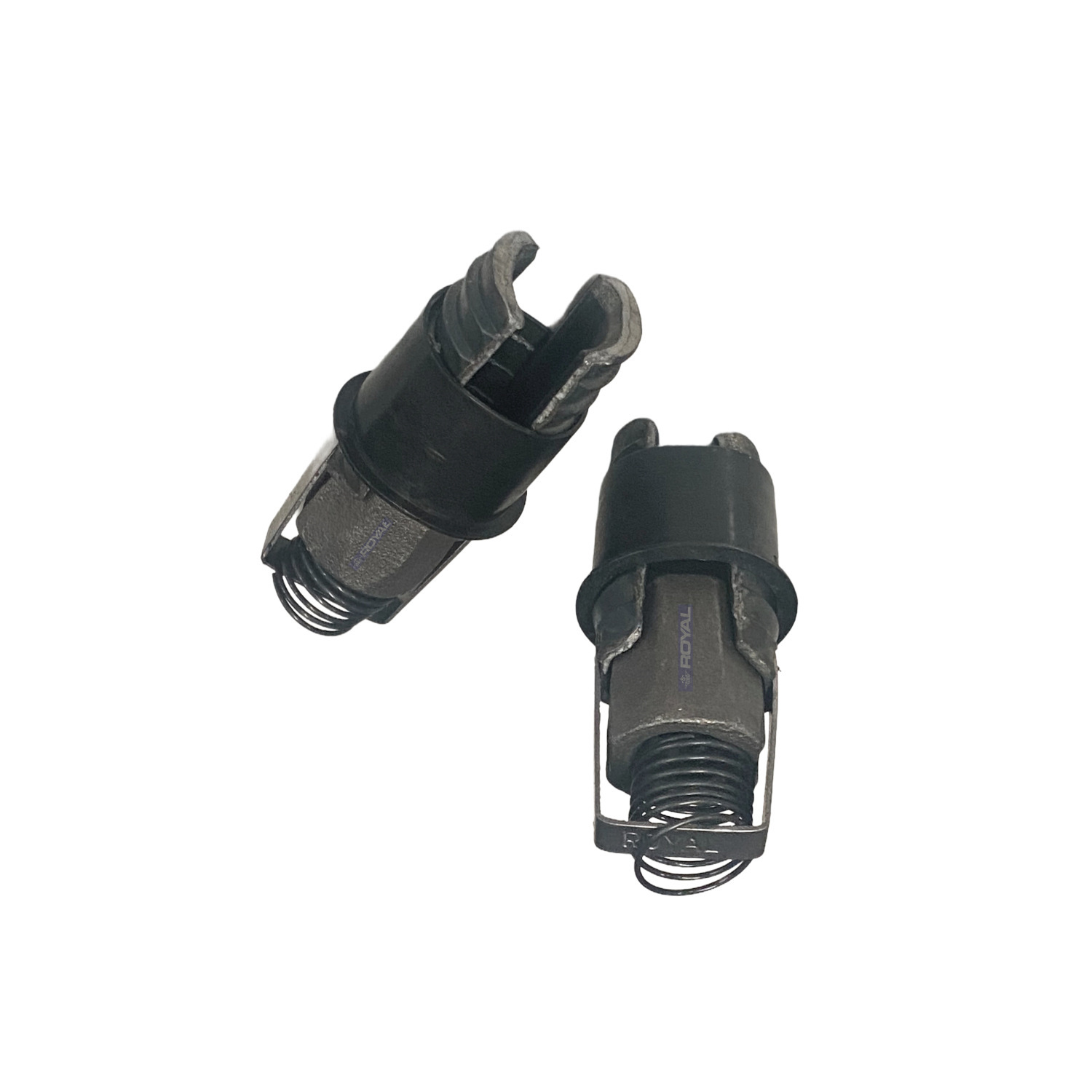

The Z Bar 15/17 Expansion Shell - Capacity 108kN is a critical component in rock anchoring systems, designed to provide pre-stressing support in hard and medium-hard rock formations. Easy to install and highly reliable, it is suitable for both temporary and permanent support applications across a wide range of geotechnical and structural projects. When paired with a domed plate, nut, and washer, the system delivers secure anchorage with minimal rotation, making it ideal for single or twin grout tube installations.

Features + Benefits:

Reliable Grounding: Provides strong, secure anchorage in hard and medium-hard rock masses.
Pre-Stressing Capability: Offers pre-stressed support, enhancing stability and load-bearing capacity.
Easy Installation: Simple to install, ideal for fast-paced construction and mining environments.
Minimal Rotation: Ensures compatibility with grout tube systems without disrupting the grout or soil structure.
Versatile Compatibility: Matches with domed plates, nuts, and washers for complete anchoring systems.
Product Uses: Widely used in jet grouting, tunnelling, slope stabilisation, water well drilling, micropiles, mining, soil nailing, deep excavations, railway, metro systems, and other civil and geotechnical engineering applications.
Pack Size: Single Z Bar 15/17 Expansion Shell - Capacity 108kN (compatible with standard rock bolt assemblies)
